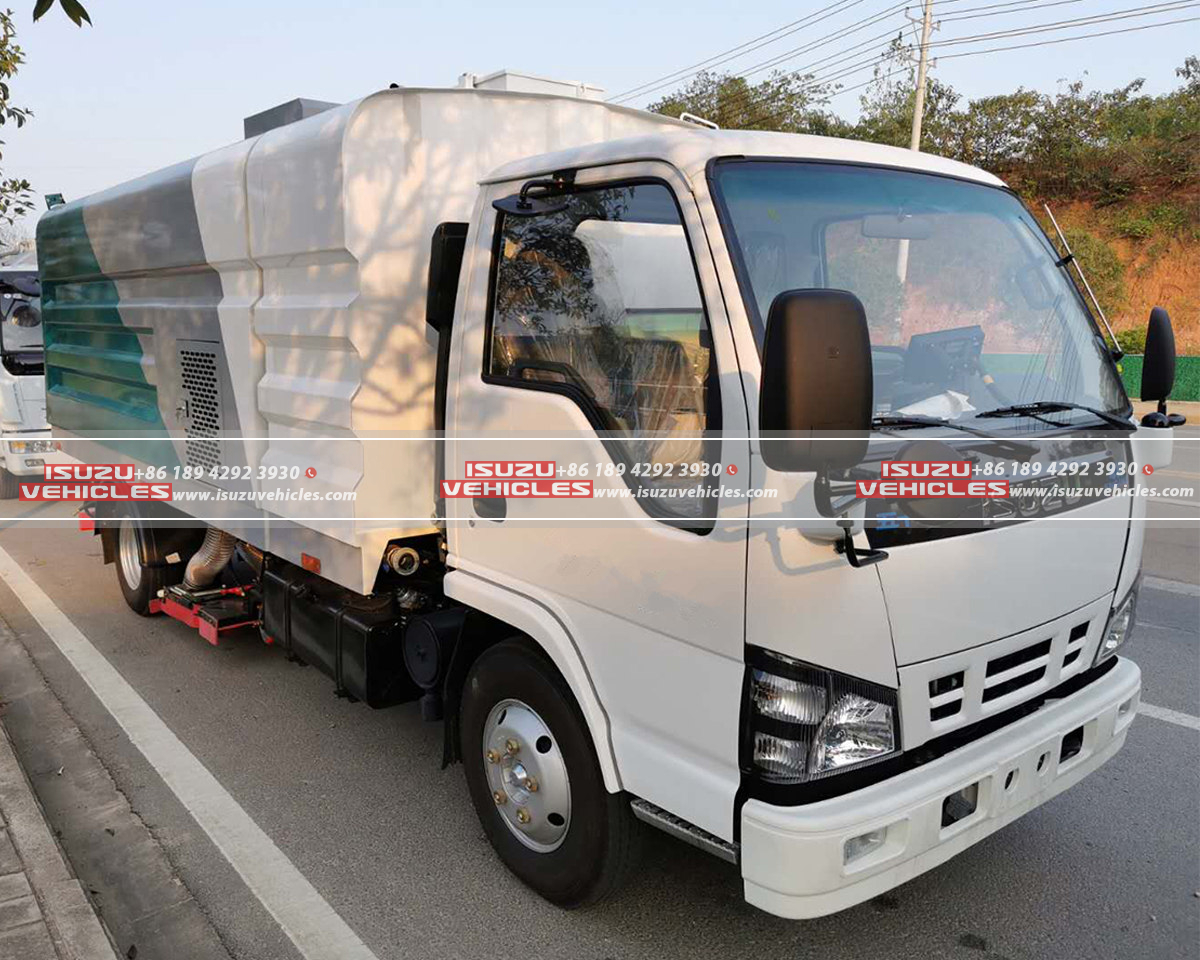

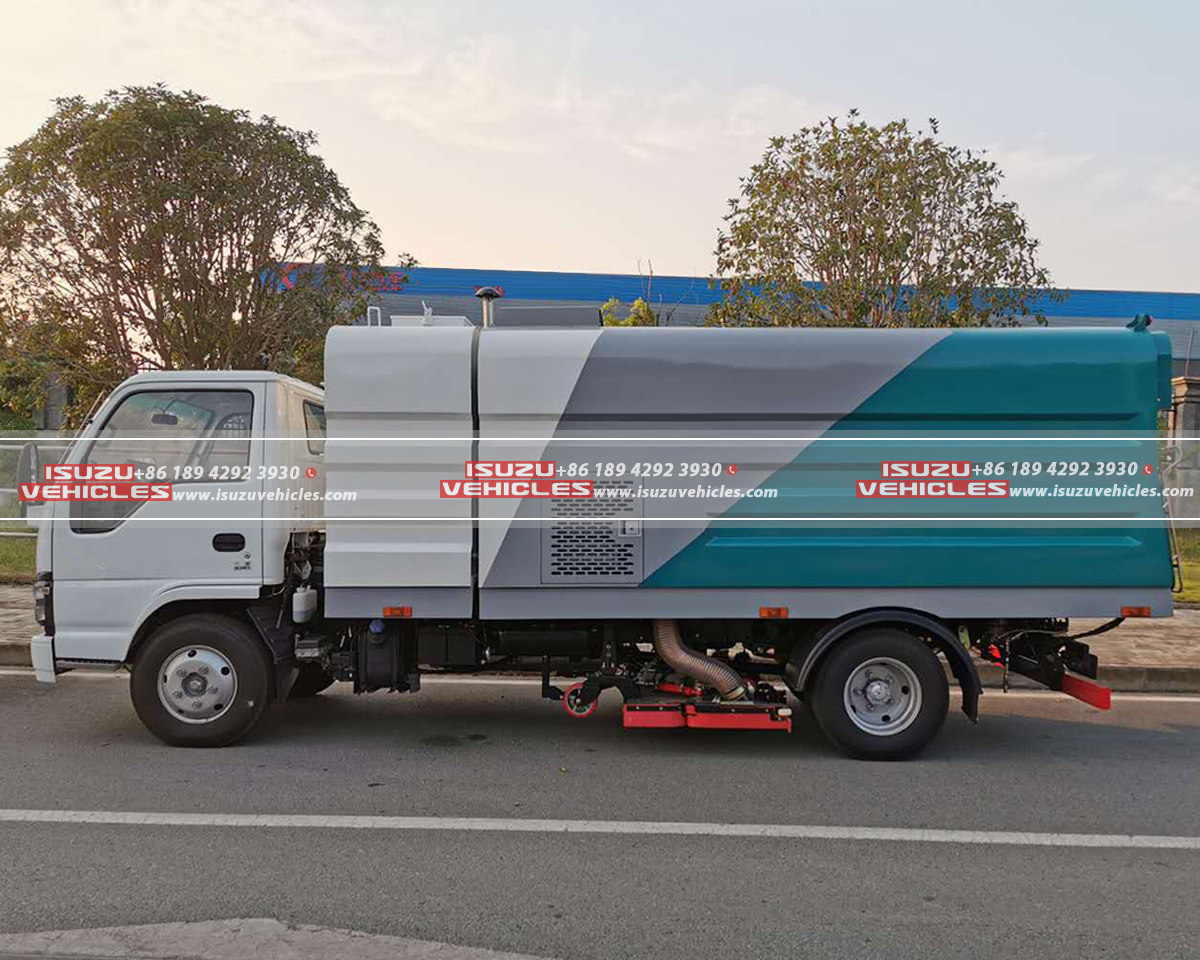

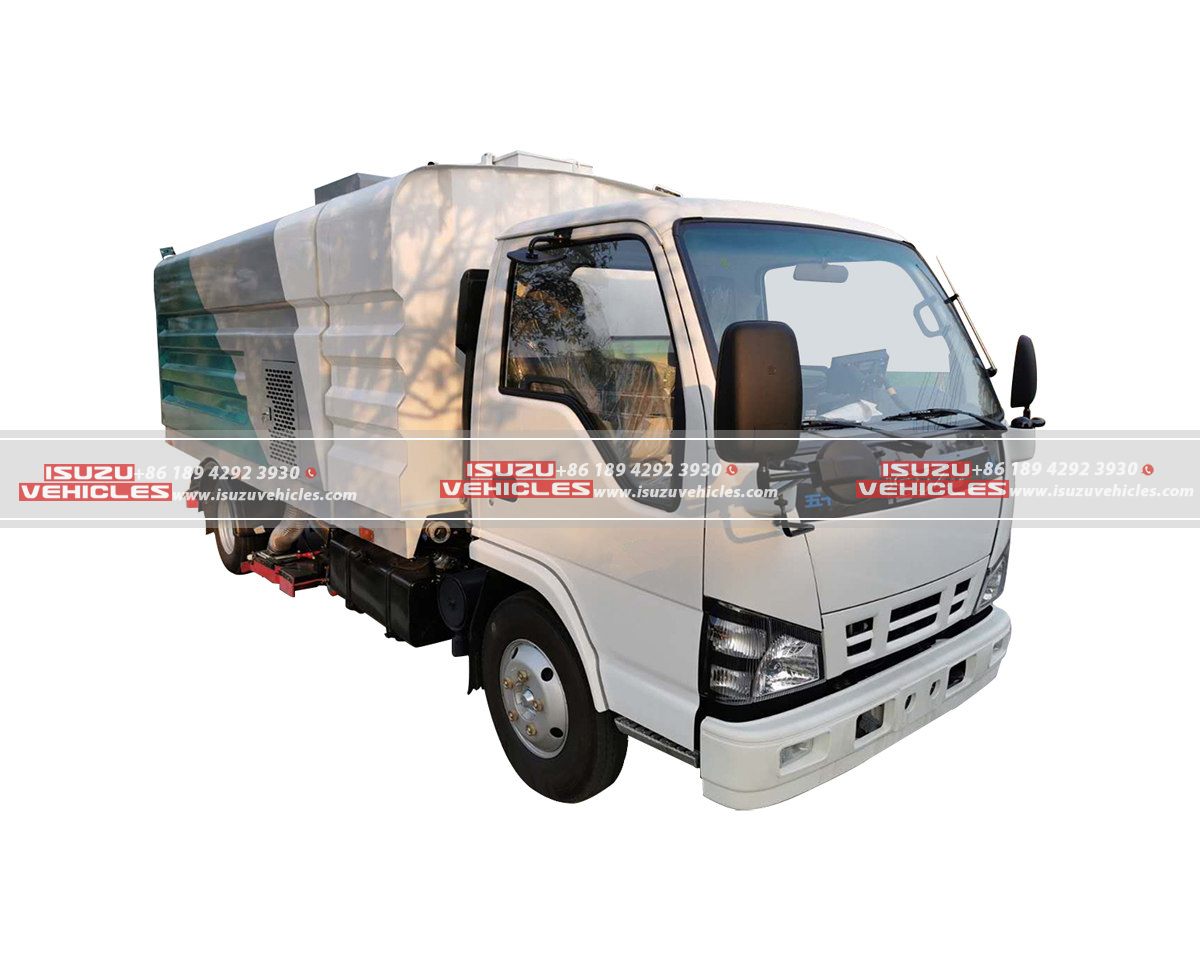

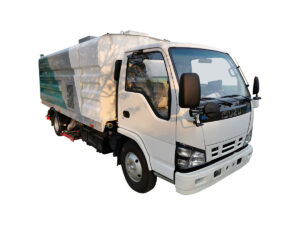

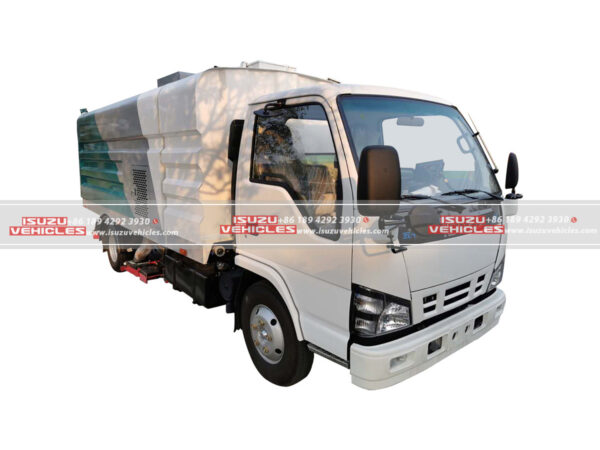

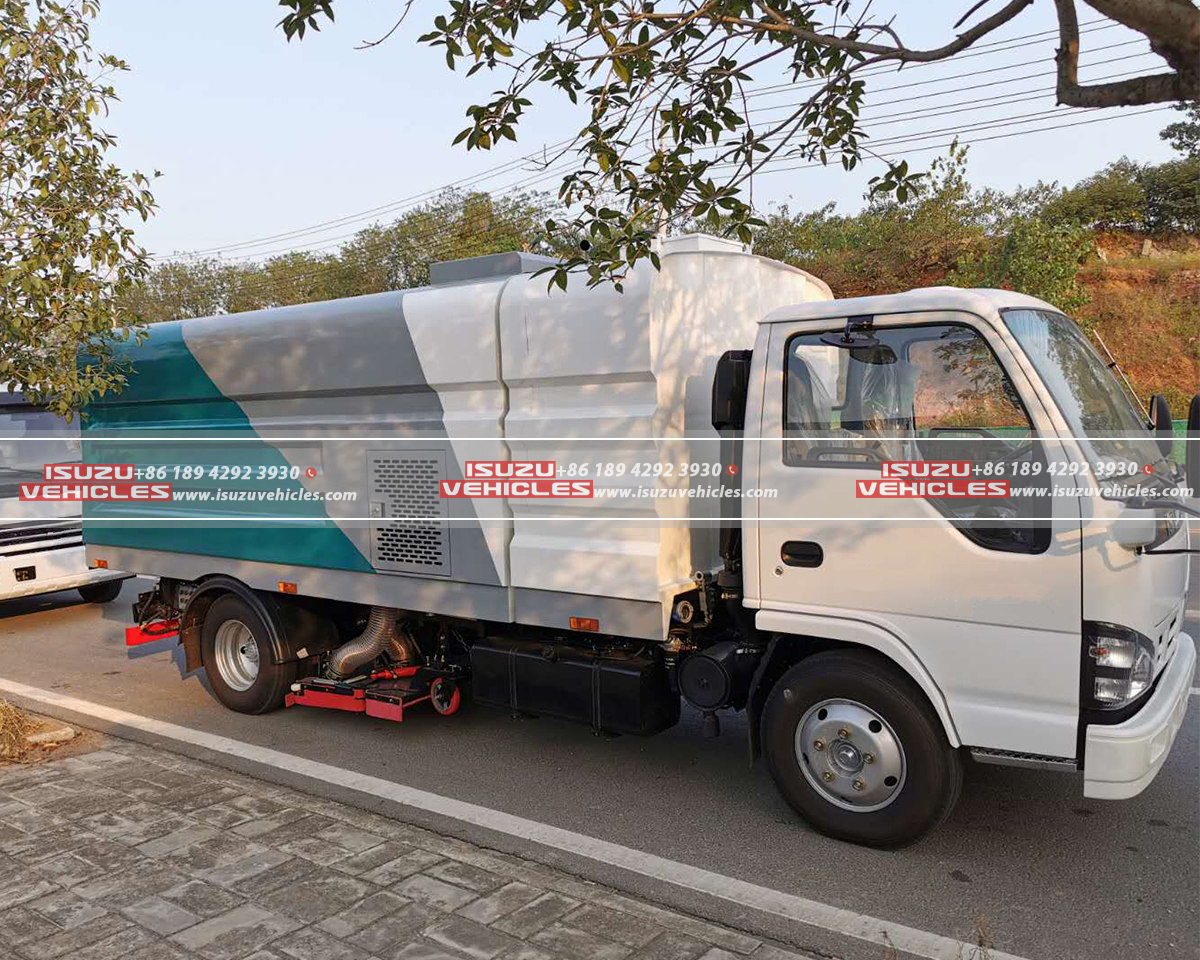

ISUZU NFR Vacuum Street Sweeper
NFR Chassis Robustness
Built on the ISUZU NFR chassis, this ISUZU NFR Vacuum Street Sweeper delivers unmatched durability for municipal and industrial cleaning. With overall dimensions of 5,995×2,260×2,650mm and a 3,360mm wheelbase, it balances a gross vehicle weight of 7,300kg with agile maneuverability. The 4+2 drive wheel configuration and 7.00R16 tires ensure stability on uneven surfaces while maintaining compact urban navigation.
High-Efficiency Euro 5 Powertrain
Powered by the ISUZU 4KH1CN5HS engine, this ISUZU sweeper truck generates 130HP (96kW) @ 3,400rpm and a peak torque of 290N·m @ 1,500rpm, optimized for sustained heavy-duty operations. The intercooled turbocharged design and ISUZU/MSB manual transmission (5F+1R) guarantee fuel efficiency and reliability in continuous sweeping cycles.

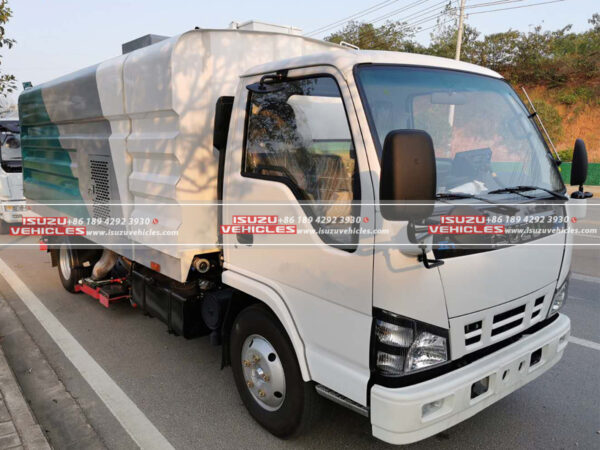

Ergonomic Operator Environment
The hydraulic power-steered cabin accommodates 1 driver + 2 passengers, featuring intuitive controls and enhanced visibility for precision in congested or narrow environments.
Features

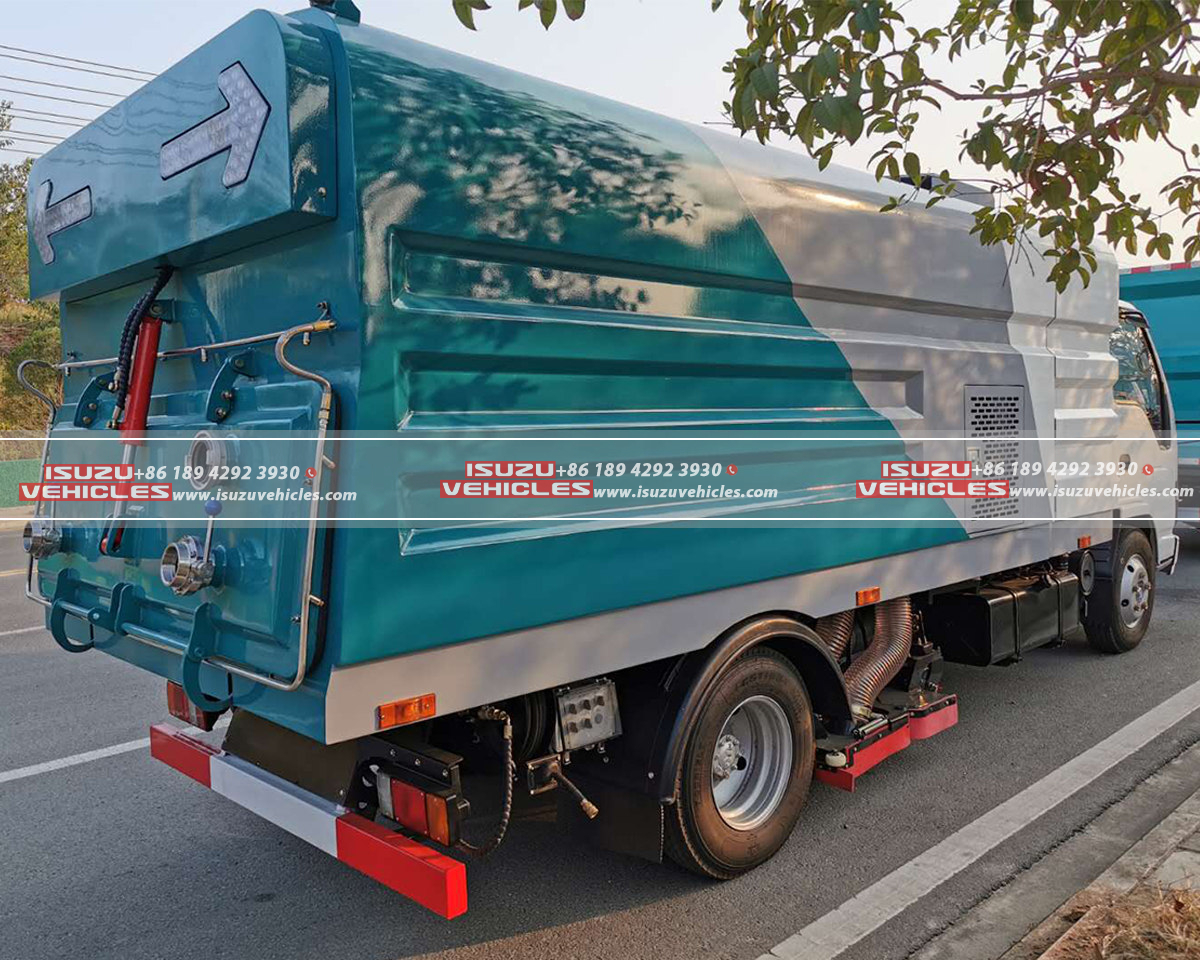

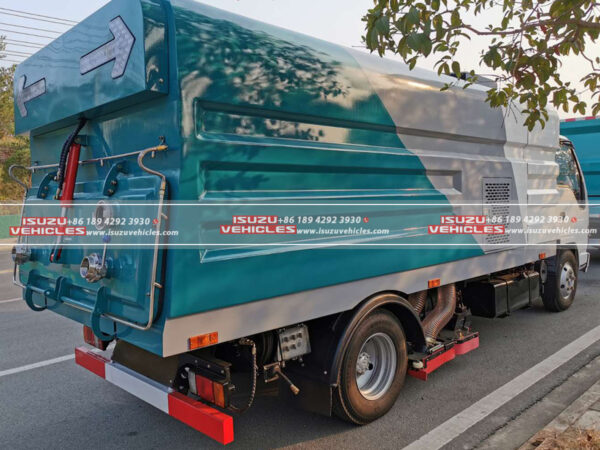

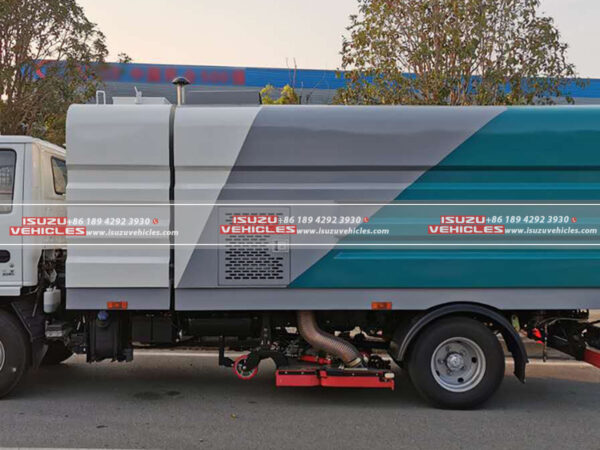

5CBM Stainless Steel Garbage Tank
Constructed from corrosion-resistant stainless steel 304, the 5CBM garbage tank ensures long-term durability in harsh conditions. An ISUZU 95HP auxiliary engine powers ancillary systems, enabling uninterrupted operation during extended cleaning sessions.
High-Pressure Airflow System
Equipped with a centrifugal blower (2,600–2,900r/min), the system generates high-pressure airflow for efficient debris lift and containment. The V belt-driven automatic clutch ensures seamless power transfer from the auxiliary engine to the blower.

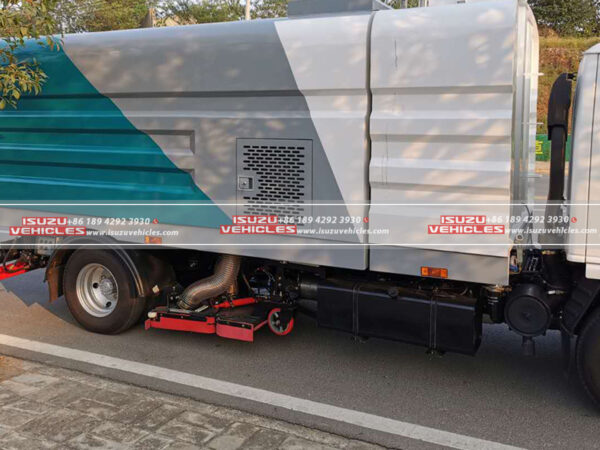

Advanced Debris Suction Technology

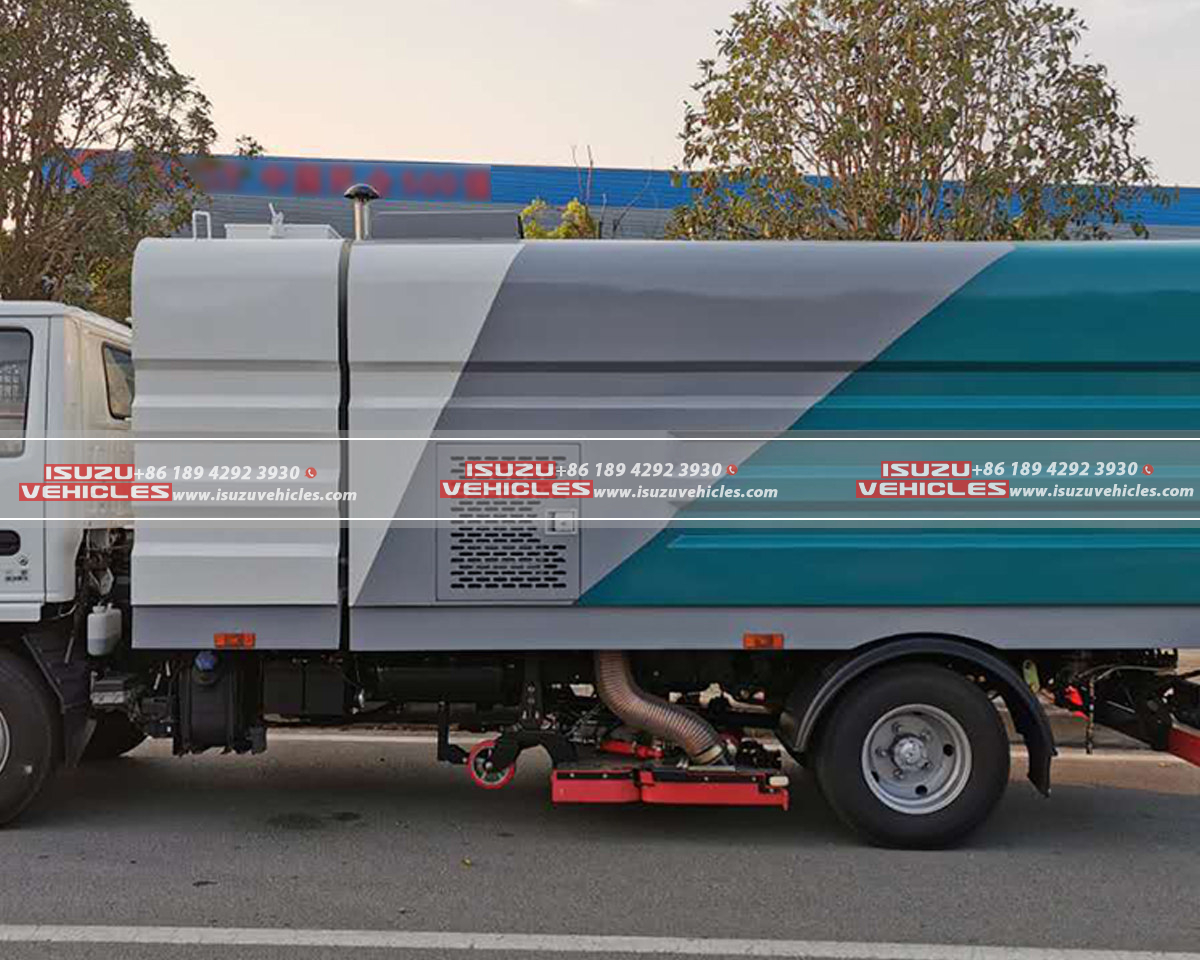

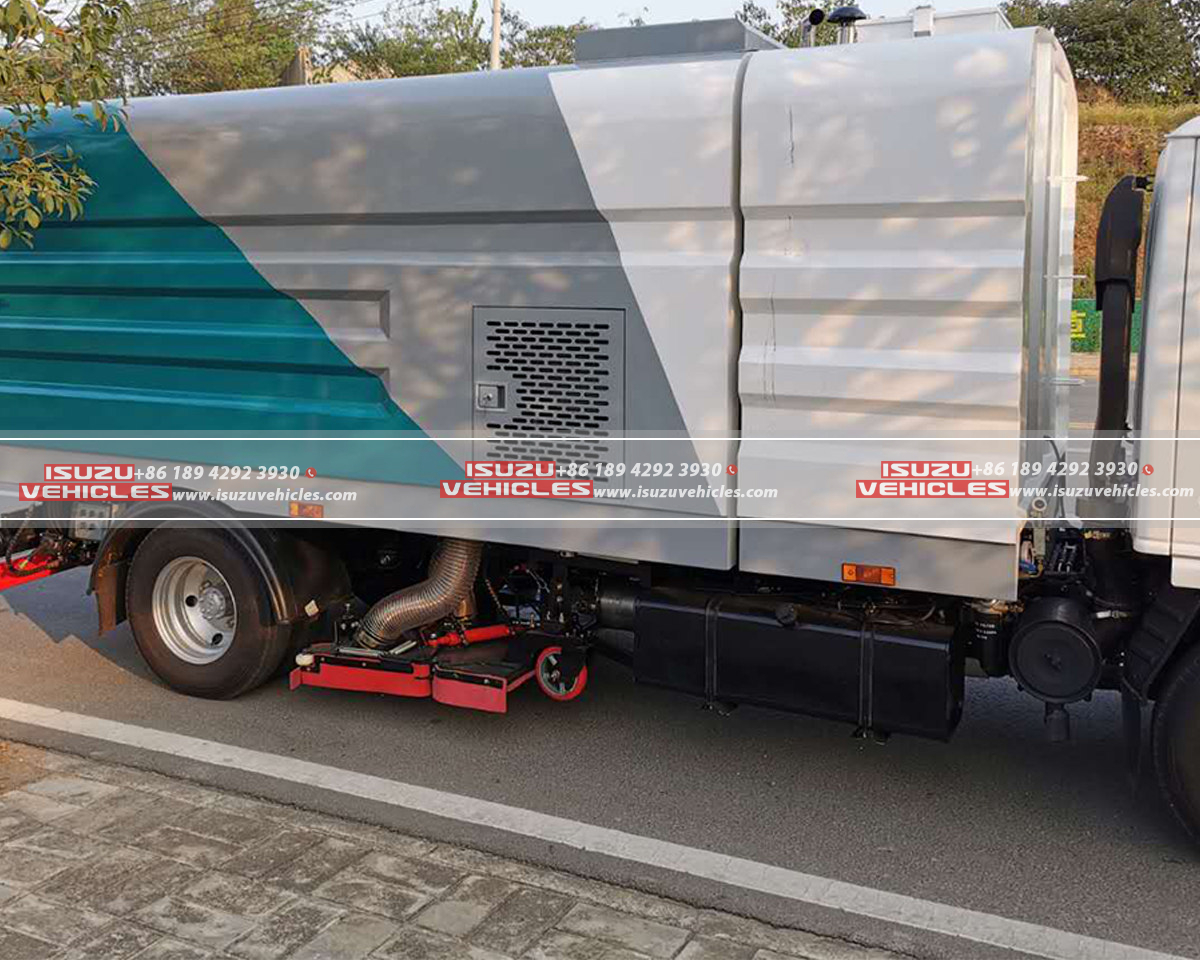

A full-floating suction nozzle with a 200mm hydraulic lift/lower port adapts to uneven surfaces, capturing debris ≥100mm in size. The independent forward operation design allows precise control over suction depth and angle, minimizing residue.
Dust Suppression & Durability

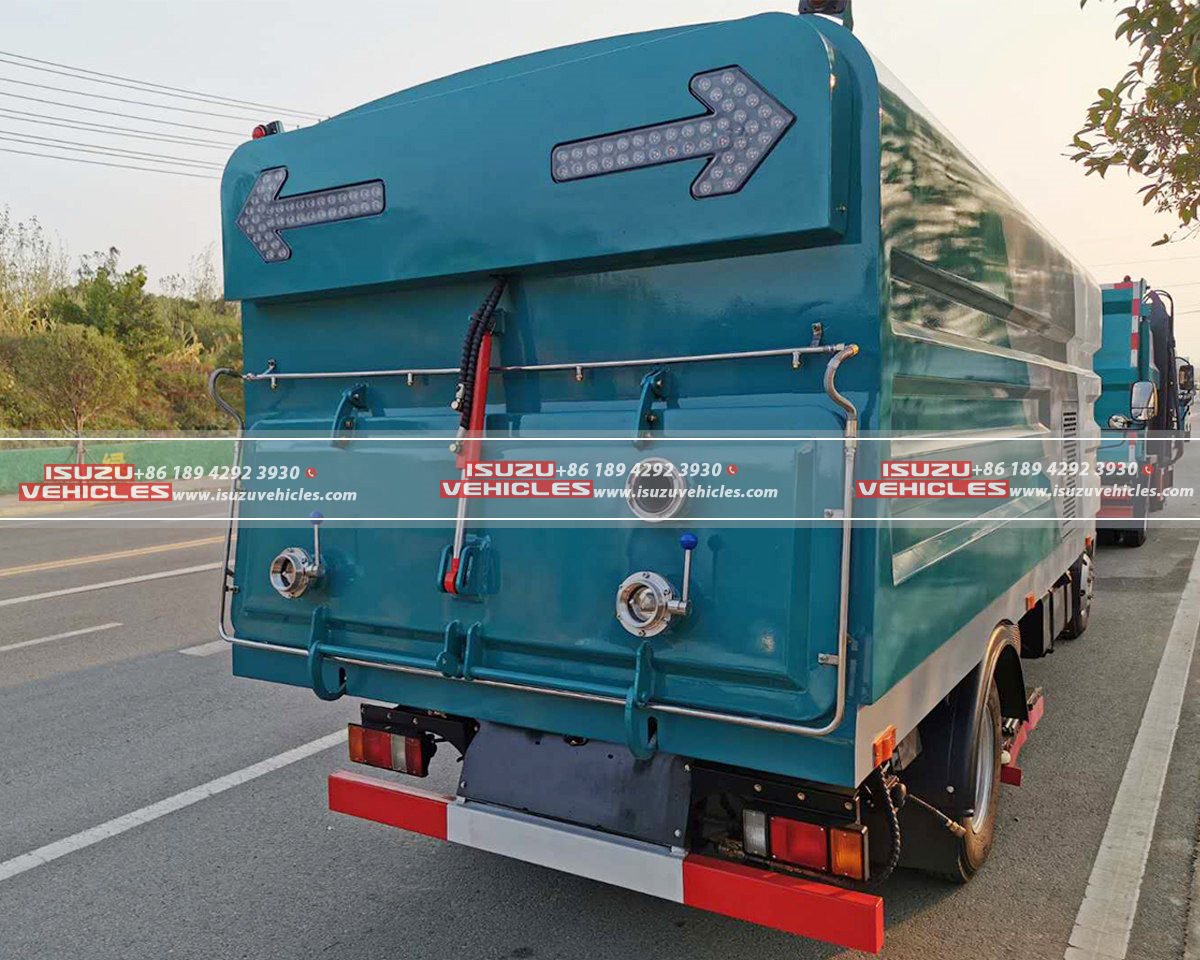

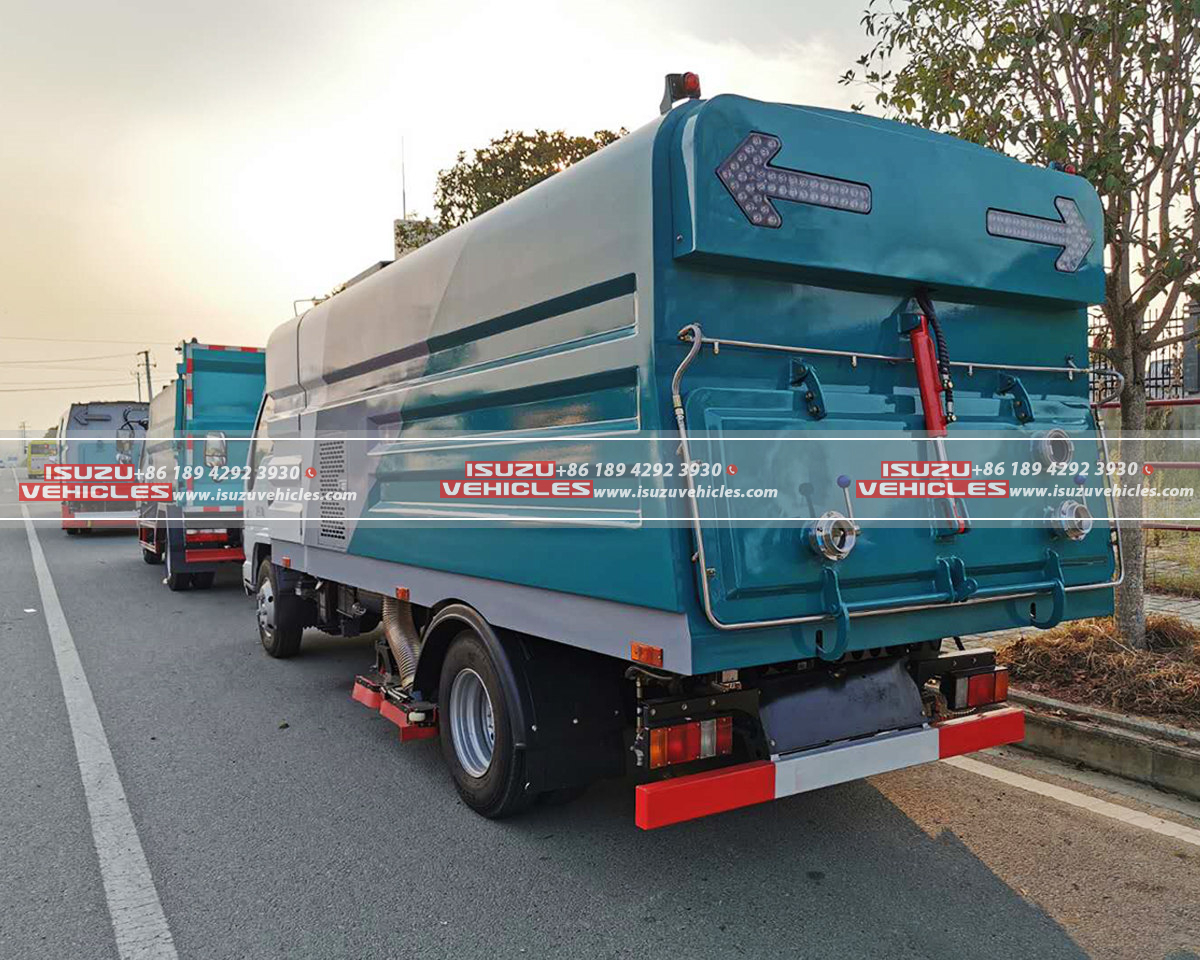

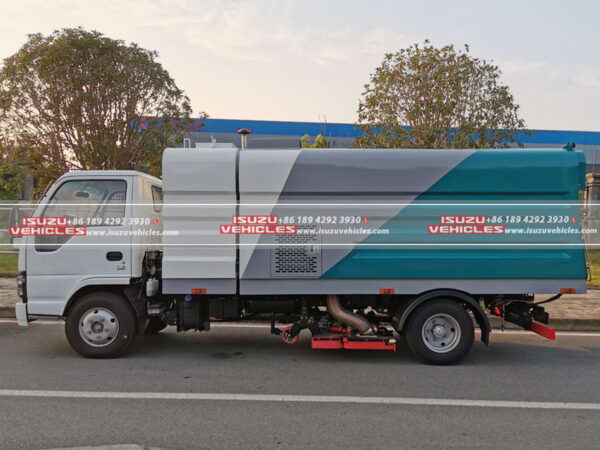

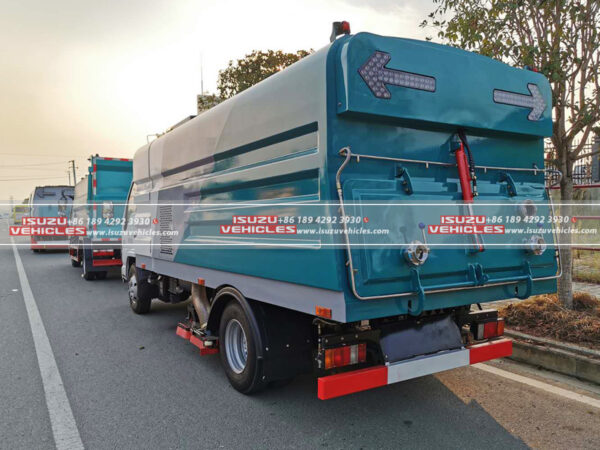

Stainless steel construction and closed-loop hydraulic systems reduce wear and corrosion, while the Euro 5-compliant engine minimizes emissions. The modular body design (tailgate, compaction plate, slide plate) ensures easy maintenance and waste ejection.
Operational Safety
Reinforced tire configurations and anti-slip hydraulic controls enhance stability during high-speed sweeping (3–20km/h) and debris compaction.
SPECIFICATIONS
| GENERAL | |
| Make/Model | ISUZU / WS05QL130L5 |
| Drive Type | 4×2 Left-Hand Drive |
| Overall Dimension
(L x W x H) |
5,995×2,260×2,650 (mm) |
| Gross Vehicle Weight | 7,300kg |
| Curb Weight | 4,600kg |
| Wheelbase | 3,360mm |
| Chassis Designed | ISUZU NFR |
| Cabin | Hydraulic power steering type.
1 driver+2 passengers |
| Drive wheel(Tires ) | 4+2 and one spare (total 7 wheels) |
| Tire Size | 7.00R16 |
| ENGINE | |
| Make / Model | ISUZU / 4KH1CN5HS |
| Type | 4 cylinders in line, 4 strokes direct injection, water cooling, Intercooled Turbocharged |
| Displacement | 2.999L |
| Nominal Power | 130HP (96kw) @ 3400rpm |
| Peak Torque | 290N.m@1,500rpm |
| Emission Standard | Euro 5 |
| TRANSMISSION | |
| Make / Model | ISUZU/MSB |
| Type | Diesel |
| Operation | Manual |
| Number of Speeds | 5F+1R |
| BODY SYSTEM | |
| Tanker Capacity | 5CBM garbage tank |
| Material | Stainless steel 304 |
| Auxiliary Engine | |
| Brand | ISUZU |
| Power | 95HP |
| AIR BLOWER | |
| Type | High-pressure, centrifugal, sweeping truck-specific used blower |
| Working Speed | 2600～2900r/min |
| Driving Mode | Drive by an ancillary engine, automatic clutch, V belt powered |
| SUCTION EQUIPMENT | |
| Type | Full-floating suction nozzle, independent forward operation, hydraulic raise & lower 200mm diameter suction port |
| Maximum Inhalation Particle Size | ≥100mm |
