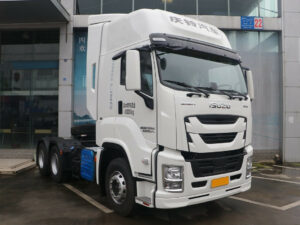

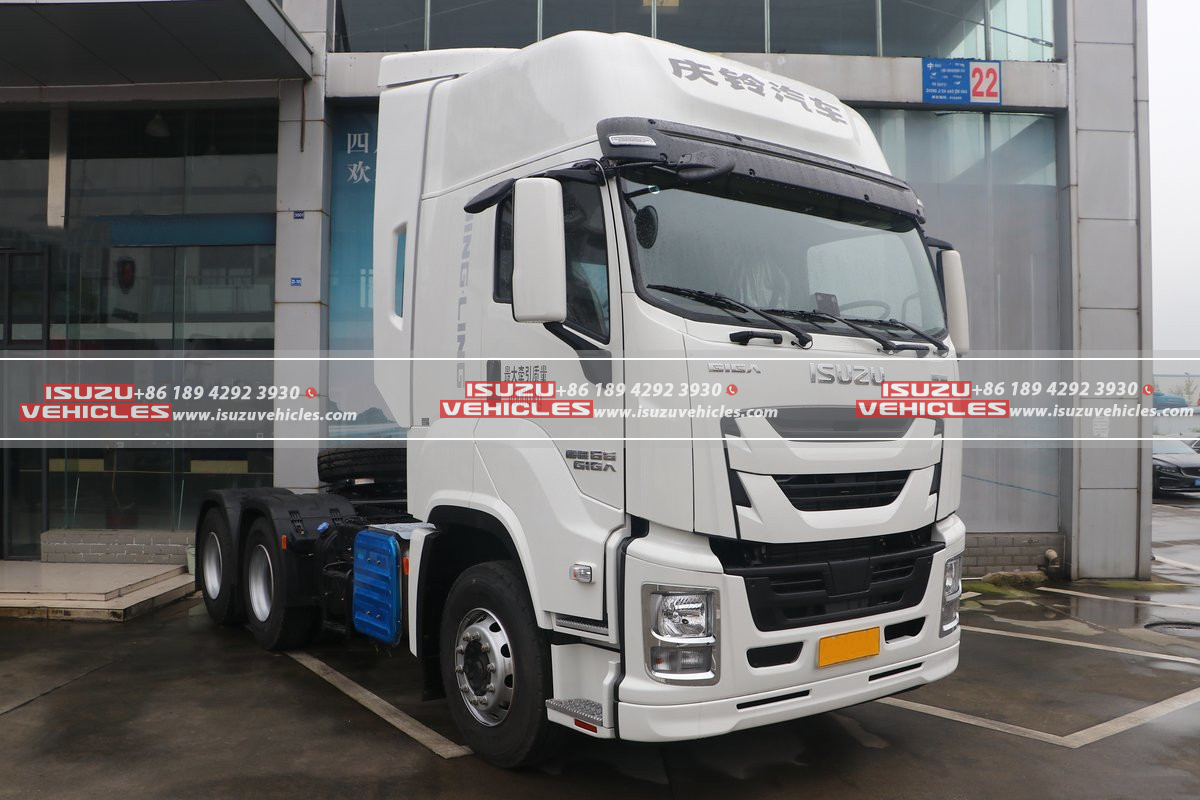

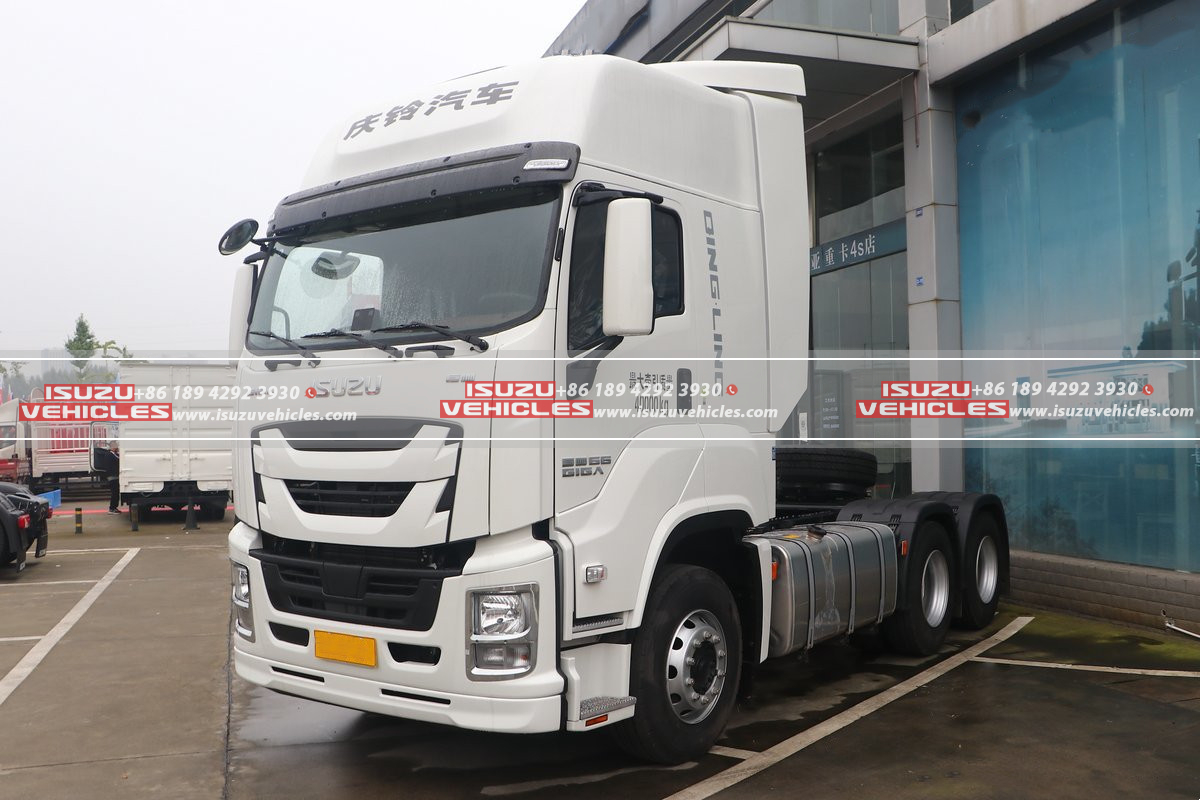

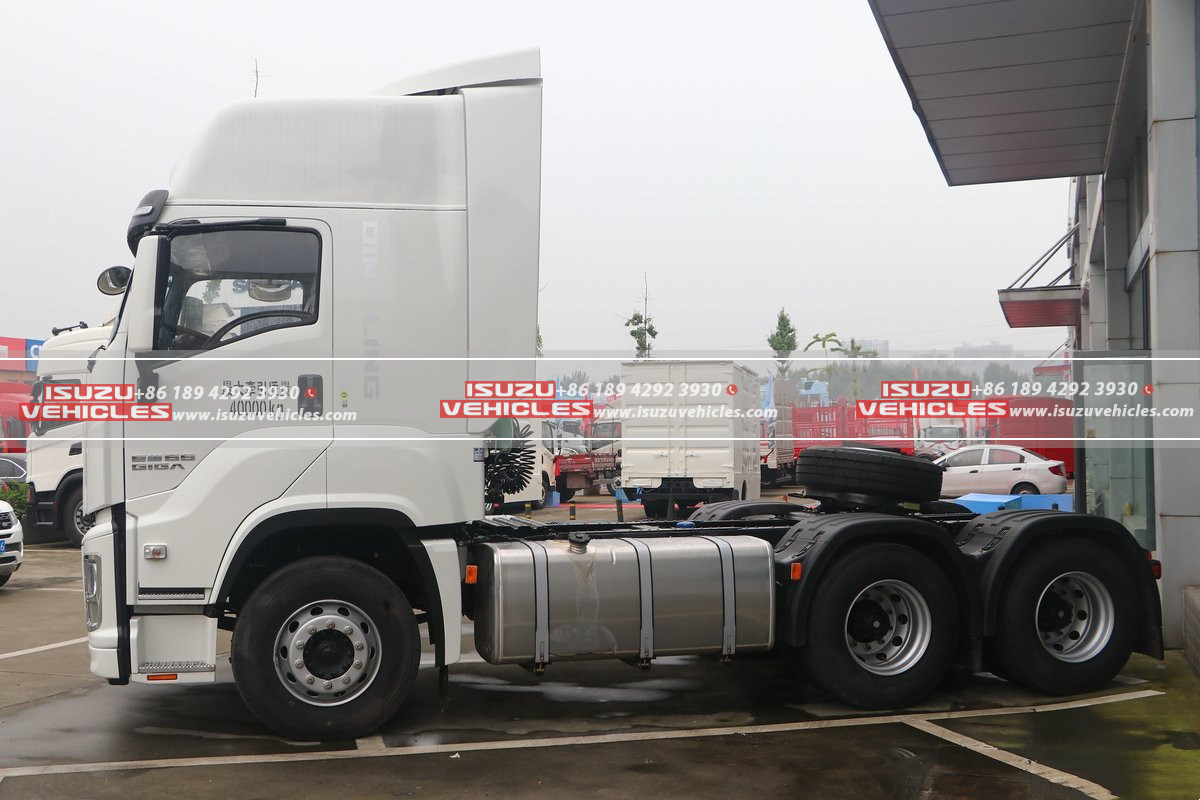

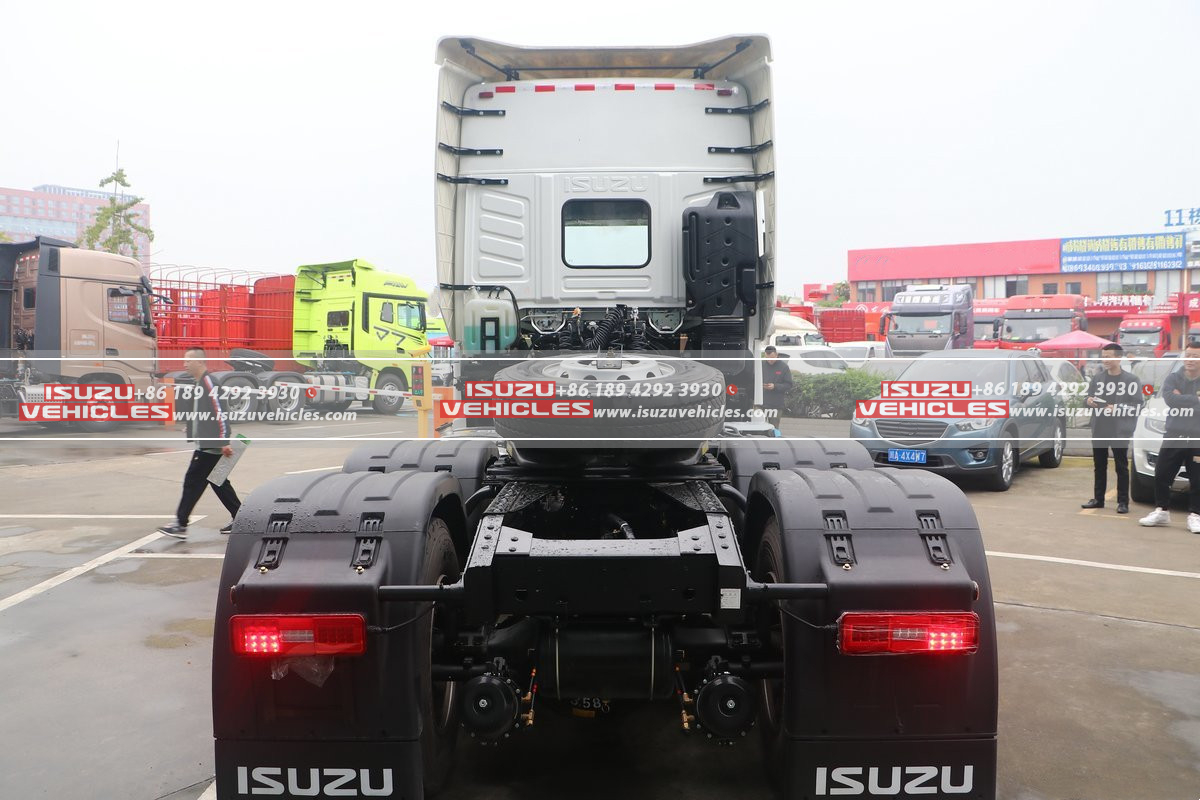

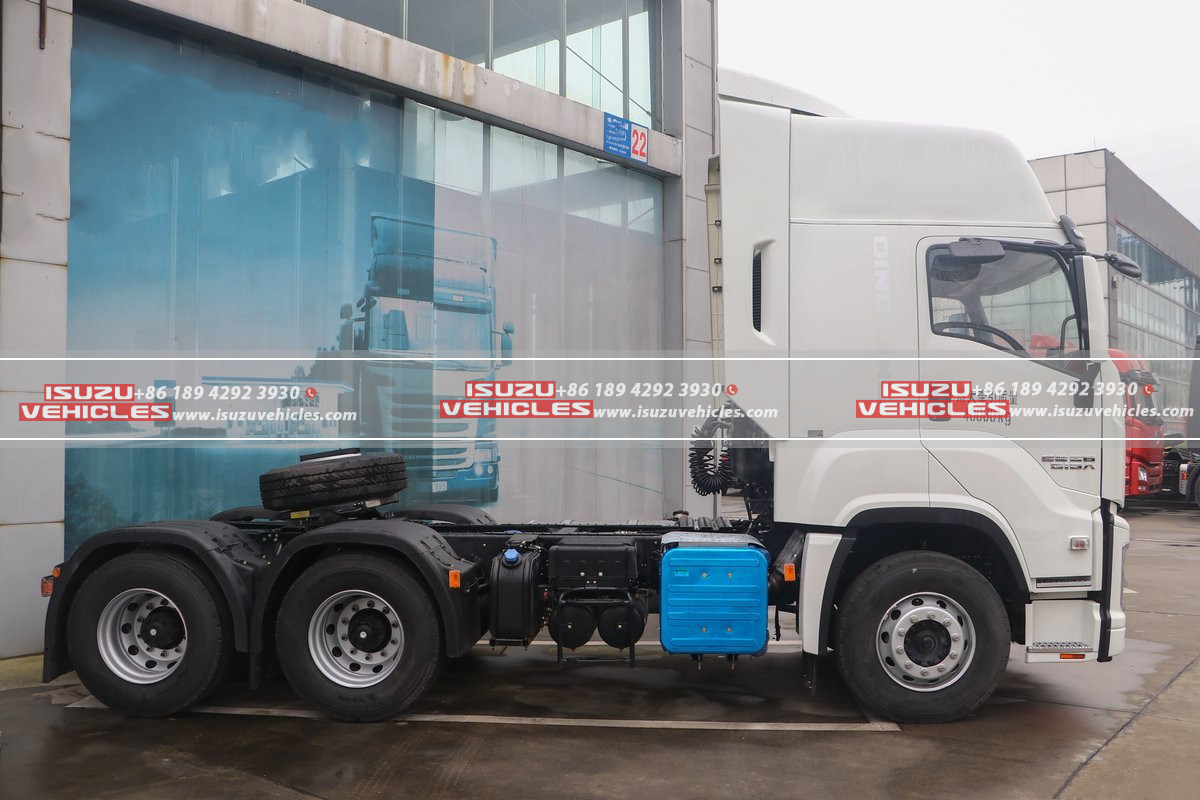

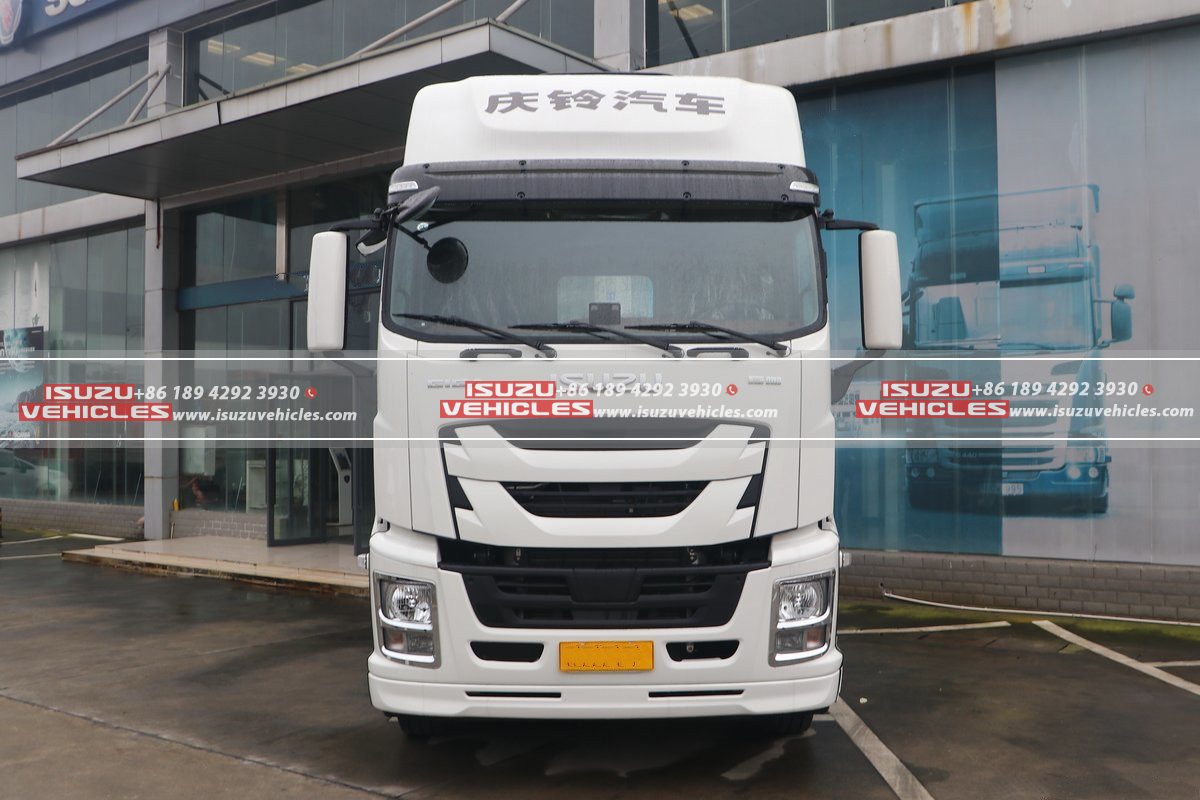

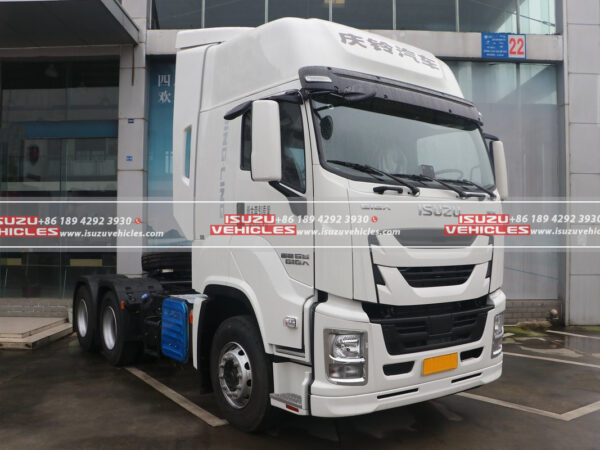

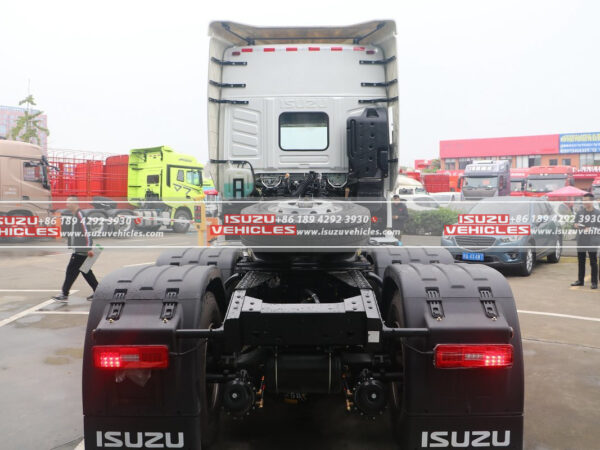

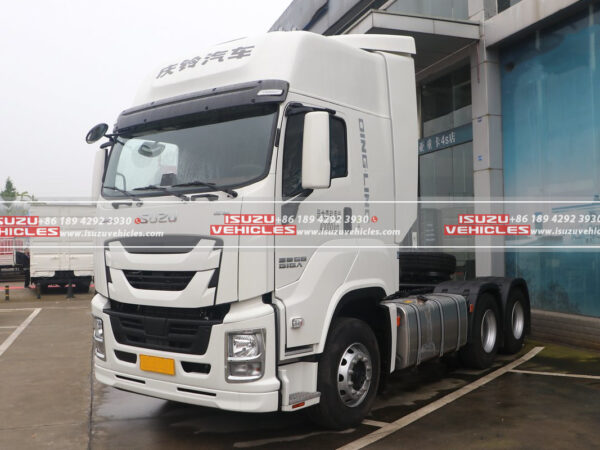

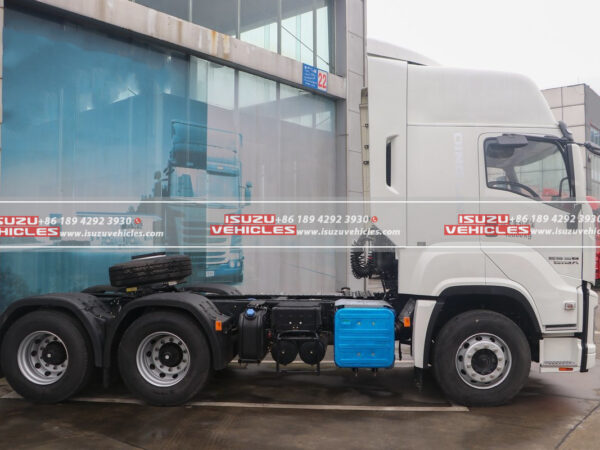

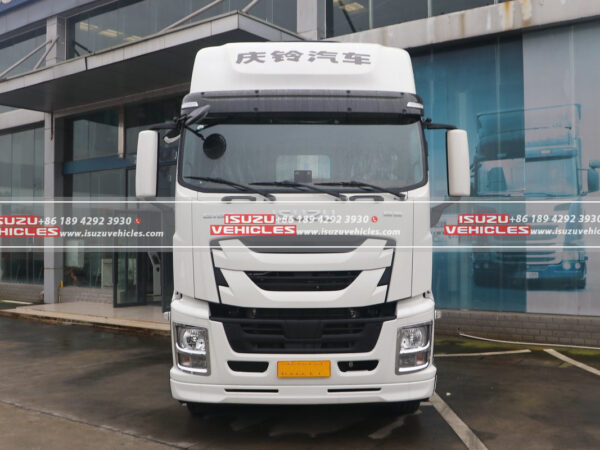

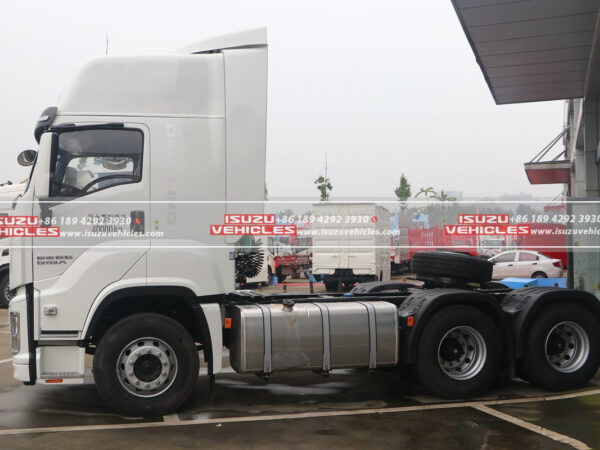

ISUZU GIGA 6×4 Tractor Truck

The ISUZU GIGA 6×4 Tractor Truck is a heavy-duty truck engineered for demanding logistics and transportation tasks. With a 520 horsepower engine and a 6×4 drive configuration, this truck is built to handle heavy loads and challenging terrains with ease. Designed for logistics, express delivery, bulk material transport, and cold chain transport, it offers exceptional performance and reliability for a wide range of industries.

Powered by the Qingling Isuzu 6WG1-TCG62 engine, this truck delivers a maximum torque of 2250 N·m and a top speed of 110 km/h, ensuring efficient and timely deliveries. Its China VI emission standard compliance highlights its eco-friendly design, making it a sustainable choice for modern freight operations. Whether navigating urban streets or long highways, the ISUZU GIGA 6×4 is a versatile and dependable solution for heavy-duty transportation needs.

---

Features

1. Powerful Engine Performance

The ISUZU GIGA 6×4 is equipped with a Qingling Isuzu 6WG1-TCG62 engine, delivering 520 horsepower and a maximum power output of 382 kW. With a 15.681L displacement and 6-cylinder inline configuration, this truck ensures smooth and powerful performance, even under heavy loads. The maximum torque of 2250 N·m at 900-1300 rpm further enhances its capability, making it ideal for long-distance and high-intensity transportation tasks.

2. Advanced Transmission System

Featuring a ZF16S2530TO 16-speed manual transmission, the ISUZU GIGA 6×4 offers precise gear shifting and improved control. The 16 forward gears and 2 reverse gears provide flexibility for various driving conditions, ensuring optimal performance in diverse environments. This advanced transmission system enhances driver control and operational efficiency, making it a reliable choice for heavy-duty applications.

3. Robust Build and Load Capacity

Designed as a heavy-duty truck, the ISUZU GIGA 6×4 boasts a gross vehicle weight of 25 tons and a towing capacity of 40 tons. Its high-strength chassis and 3/4, 7/10 spring leaf suspension ensure durability and stability, even under heavy loads. The 12R22.5 18PR tires further enhance load-bearing capacity and traction, making it suitable for diverse transportation needs.

4. Driver Comfort and Safety

The ISUZU GIGA 6×4 features a high-roof cab with air suspension seats, providing exceptional comfort for long hauls. Advanced safety features include ABS (Anti-lock Braking System), ensuring safe and secure operations. The aluminum alloy fuel tank reduces weight and improves fuel efficiency, while the 2-passenger capacity ensures practicality for team operations.

5. Eco-Friendly and Efficient

Compliant with the China VI emission standard, the ISUZU GIGA 6×4 is designed to minimize environmental impact. Its diesel engine is optimized for fuel efficiency, reducing operational costs while maintaining high performance. This combination of eco-friendliness and efficiency makes it a forward-thinking choice for businesses aiming to balance performance and sustainability.

---

The ISUZU GIGA 6×4 Tractor Truck combines power, versatility, and reliability, making it an excellent choice for businesses seeking a high-performance heavy-duty truck for logistics and transportation. Its advanced features and robust design ensure it meets the demands of modern freight operations while delivering exceptional value.



SPECIFICATIONS:

Category	Specification
Drive Configuration	6X4
Wheelbase	3385+1370 mm
Engine	Qingling Isuzu 6WG1-TCG62
Transmission	ZF16S2530TO
Body Length	6.895 meters
Body Width	2.54 meters
Body Height	3.97 meters
Front Wheel Track	2065 mm
Rear Wheel Track	1875/1875 mm
Curb Weight	8.87 tons
Gross Vehicle Weight	25 tons
Towing Capacity	40 tons
Top Speed	110 km/h
Market Segment	Logistics, Express Delivery, Bulk Material Transport, Daily Goods Transport, Cold Chain Transport
Origin	Chongqing Jiulongpo
Tonnage Class	Heavy-Duty Truck
Engine Model	Qingling Isuzu 6WG1-TCG62
Engine Brand	Qingling Isuzu
Cylinder Count	6 cylinders
Fuel Type	Diesel
Cylinder Arrangement	Inline
Displacement	15.681L
Emission Standard	China VI
Max Horsepower	520 HP
Max Power Output	382 kW
Max Torque	2250 N·m
Max Torque RPM	900-1300 rpm
Rated RPM	1800 rpm
Transmission Model	ZF16S2530TO
Transmission Brand	ZF
Shifting Method	Manual
Forward Gears	16
Reverse Gears	2
