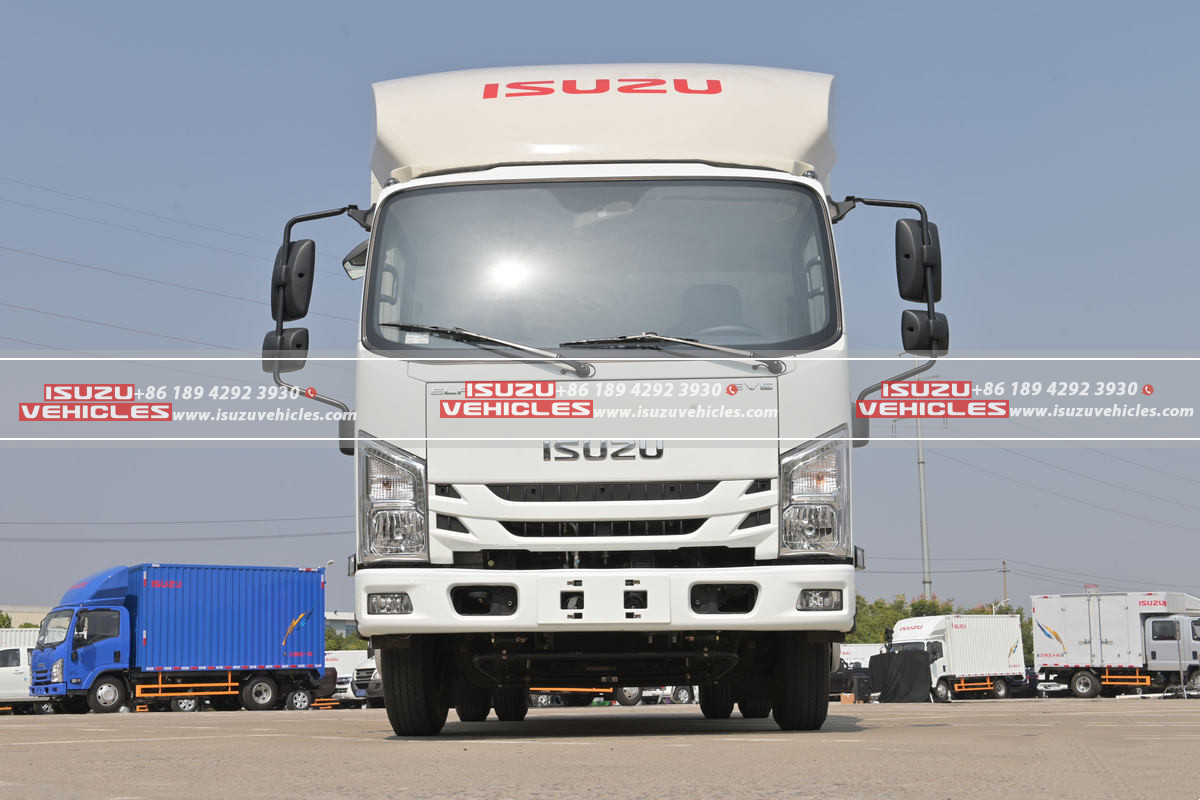

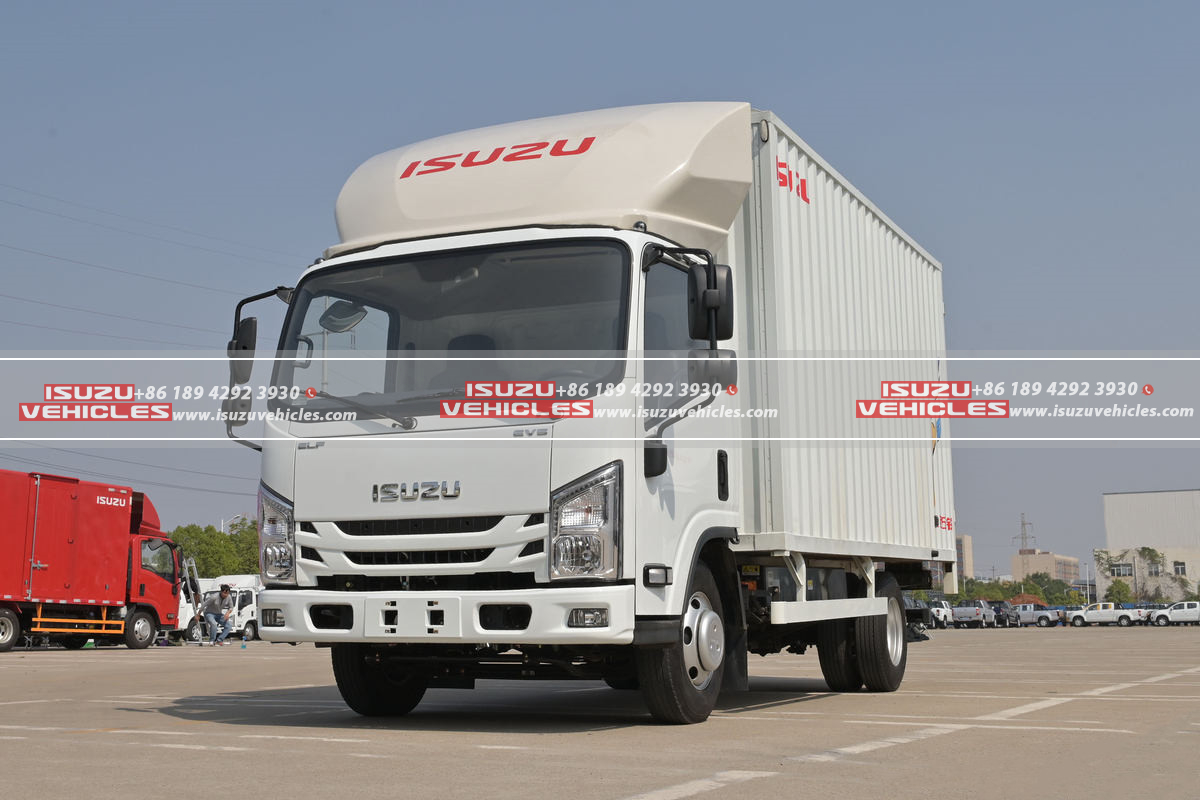

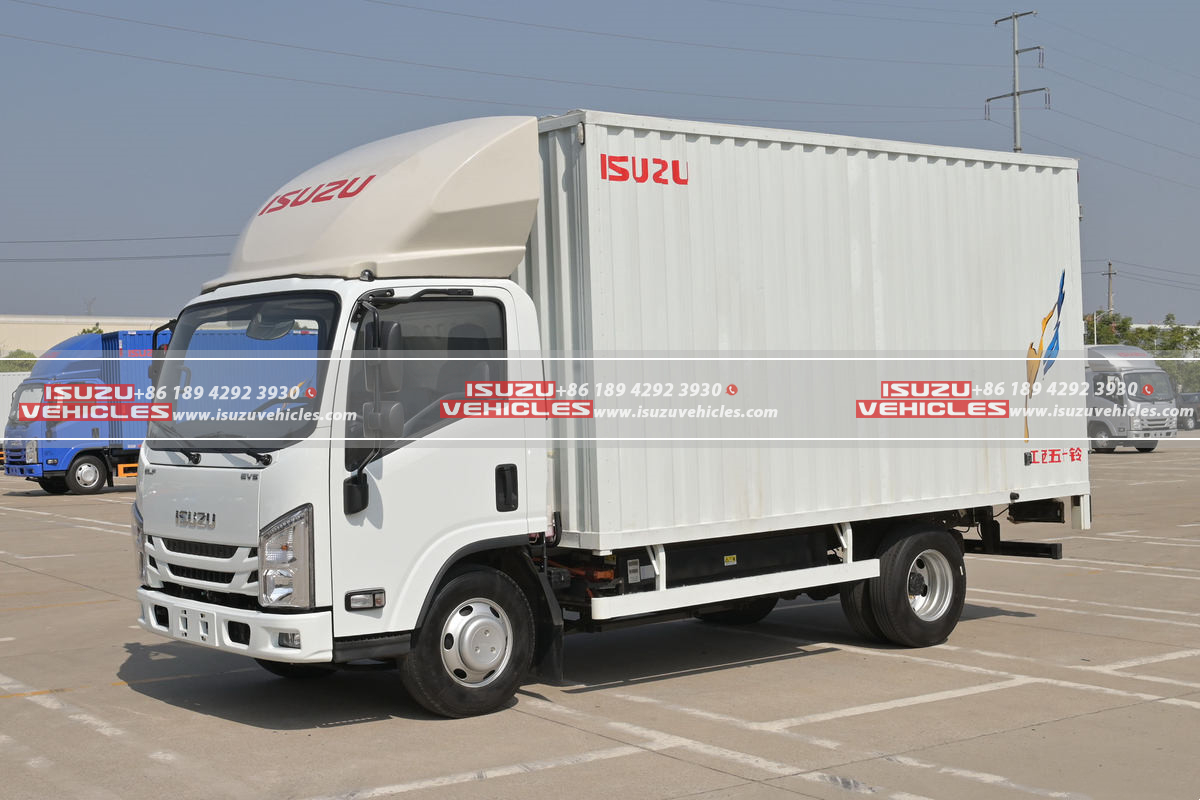

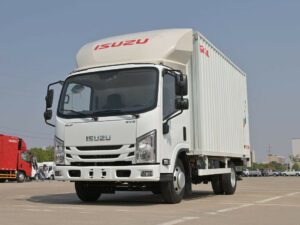

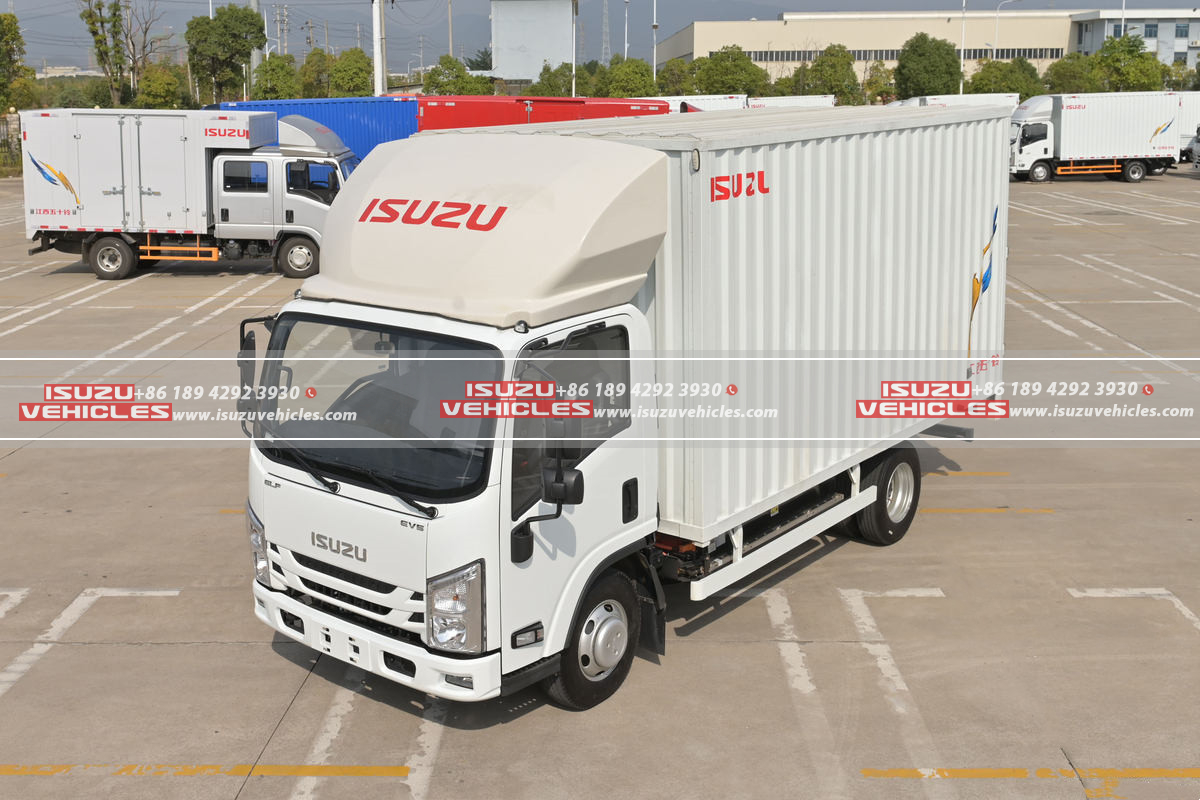

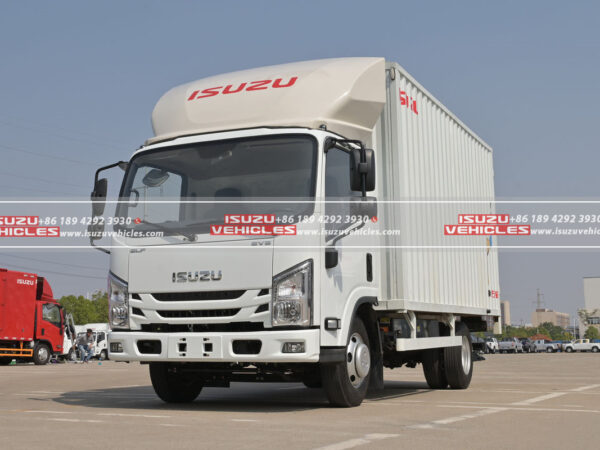

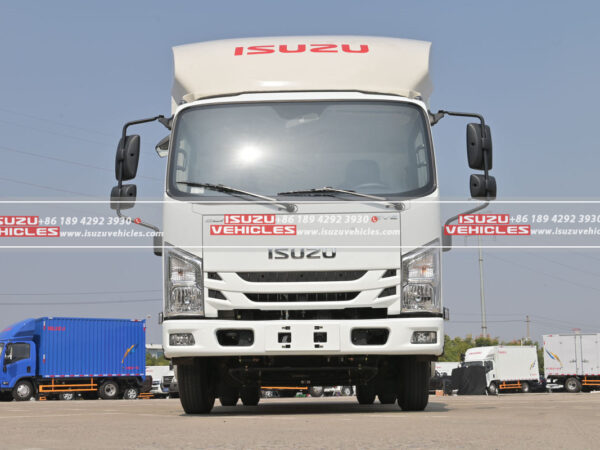

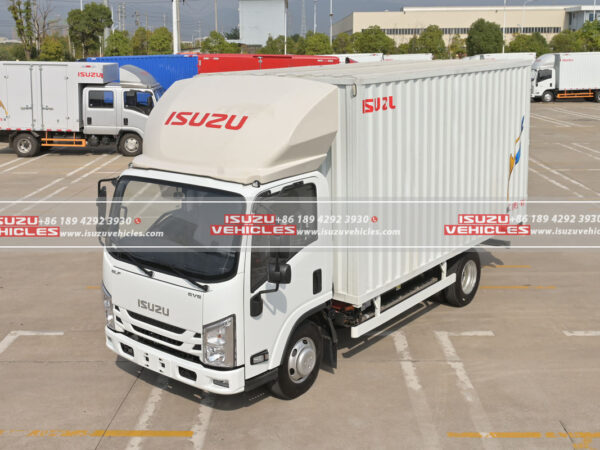

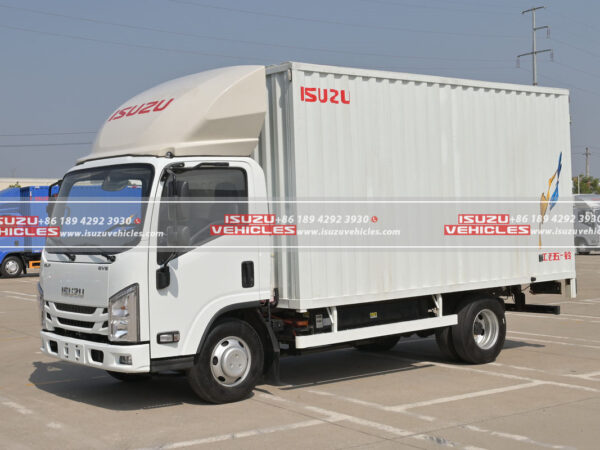

ISUZU ELF Electric 4.2 Meter Box Truck
The ISUZU ELF Electric 4.2-Meter Box Truck is a light-duty commercial vehicle designed for urban logistics and eco-friendly transportation. Built with a 4×2 drive system and a 3360 mm wheelbase, this truck offers exceptional maneuverability and stability, making it ideal for navigating city streets and tight spaces. With a 4.2-meter cargo box length, it provides ample storage space for transporting goods securely, while its 4.495-ton gross vehicle weight and 1.315-ton payload capacity ensure it can handle light to medium loads with ease.
Manufactured in Nanchang, Jiangxi, the ISUZU ELF Electric is powered by a permanent magnet synchronous motor from Shaanxi Hande, delivering 163 horsepower and 120 kW of peak power. Its 81.14 kWh battery from CATL ensures a reliable range and fast charging capabilities, making it a sustainable choice for urban delivery and logistics. Whether for last-mile delivery or local freight transport, this truck is built to deliver zero-emission performance and operational efficiency.
Features
Performance and Electric Drivetrain
The ISUZU ELF Electric is equipped with a TZ230XSIN105 motor, featuring permanent magnet synchronous technology for high efficiency and durability. The motor delivers a peak power of 120 kW and a rated power of 60 kW, ensuring strong performance even under urban driving conditions. The 325 N·m peak torque provides excellent acceleration and pulling power, while the 150 N·m rated torque ensures consistent performance.
Design and Dimensions

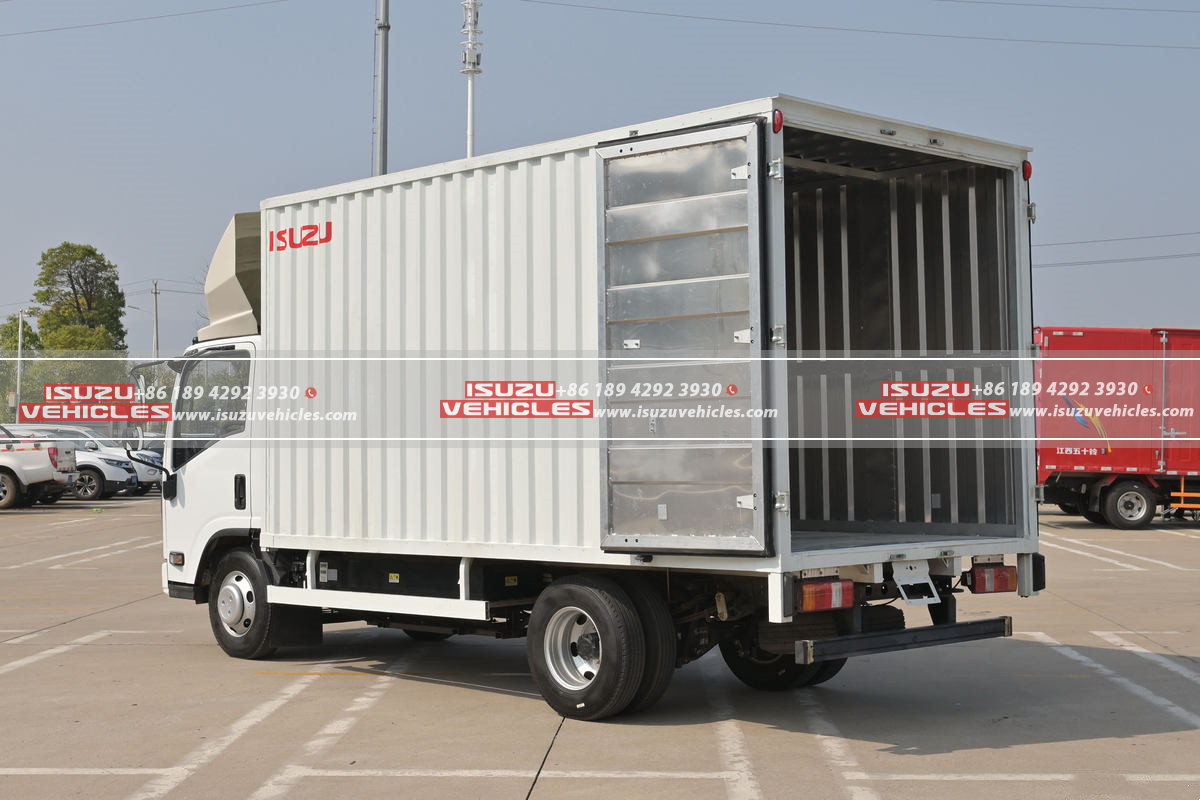

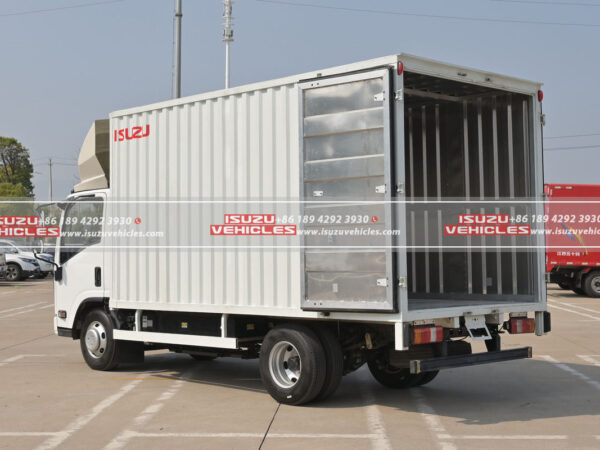

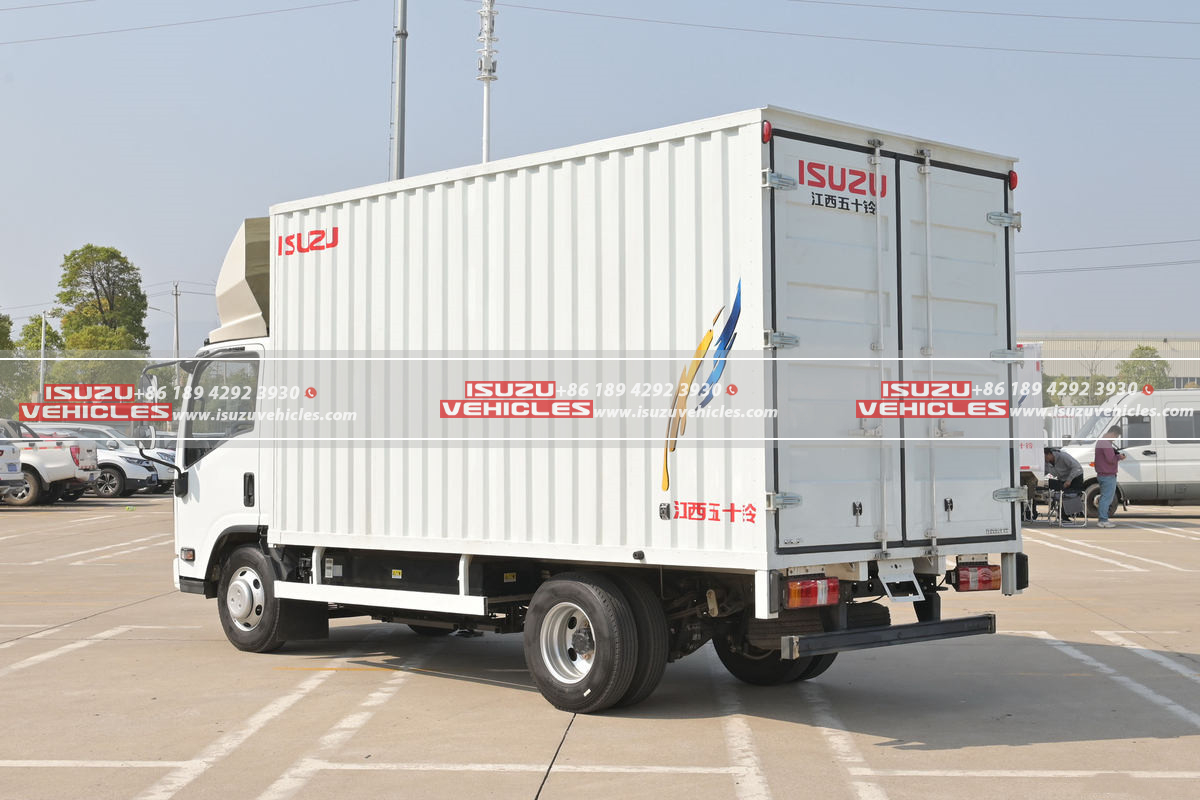

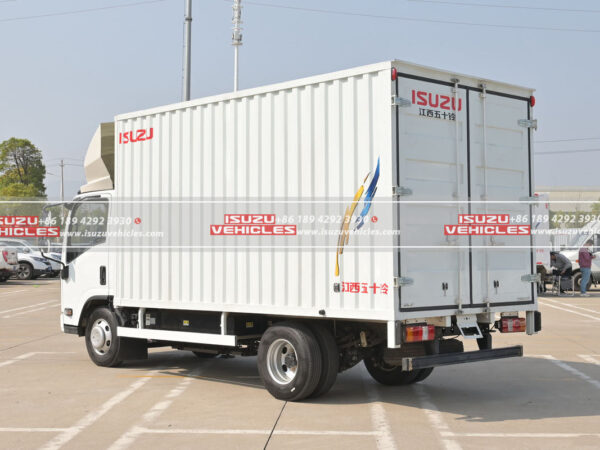

The truck boasts a 5.995-meter body length, 2.23-meter width, and 2.83-meter height, offering a compact yet spacious design for urban environments. The 4.2-meter cargo box provides a 2.1-meter width and 2.1-meter height, making it suitable for transporting a variety of goods. The lightweight construction and aerodynamic design enhance energy efficiency, reducing operational costs.
Battery and Charging
The ISUZU ELF Electric is powered by an 81.14 kWh lithium-ion battery from CATL, known for its high energy density and long lifespan. This advanced battery technology ensures a reliable range and fast charging capabilities, making it ideal for urban delivery routes. The zero-emission design aligns with global sustainability goals, reducing the carbon footprint of urban logistics.
Safety and Comfort
Safety is a priority in the ISUZU ELF, with ABS anti-lock braking as a standard feature, ensuring reliable stopping power in all conditions. The single-row cabin comfortably seats up to three passengers, with ergonomic seating and a spacious interior designed for driver comfort during long shifts. The electric windows, electric mirrors, and multifunction steering wheel add convenience, while the reverse camera enhances safety during maneuvering.
Tire and Suspension
The truck is fitted with 6 tires of size 7.00R16LT 8PR/10PR, providing excellent traction and durability. The 1875 kg front axle load capacity and 2620 kg rear axle load capacity ensure balanced performance under light to medium loads, while the robust suspension system guarantees a smooth ride even on uneven urban roads.
The ISUZU Box Truck is a sustainable and efficient solution for businesses requiring urban logistics and eco-friendly transportation. With its powerful electric drivetrain, spacious cargo box, and advanced safety features, this truck is designed to meet the demands of modern urban delivery while paving the way for a greener future.
SPECIFICATIONS:
| Attribute | Details |
|---|---|
| Type | Van Truck |
| Drive Form | 4X2 |
| Wheelbase | 3360mm |
| Box Length Class | 4.2m |
| Body Length | 5.995m |
| Body Width | 2.23m |
| Body Height | 2.83m |
| Gross Vehicle Weight | 4.495 tons |
| Rated Payload | 1.315 tons |
| Curb Weight | 2.985 tons |
| Max Speed | 90km/h |
| Tonnage Class | Light Truck |
| Manufacturing Location | Jiangxi Nanchang |
| Engine Parameters | |
| – Max Horsepower | 163hp |
| Motor Parameters | |
| – Rear Motor Brand | Shaanxi Hande |
| – Rear Motor Model | TZ230XSIN105 |
| – Motor Type | Permanent Magnet Synchronous Motor |
| – Total Rated Power | 60kW |
| – Peak Power | 120kW |
| – Total Rated Torque | 150N·m |
| – Total Peak Torque | 325N·m |
| Fuel Type | Pure Electric |
| Battery/Charging | |
| – Battery Brand | CATL |
| – Battery Capacity | 81.14kWh |
| Cargo Box Parameters | |
| – Cargo Box Form | Van |
| – Cargo Box Length | 4.2m |
| – Cargo Box Width | 2.1m |
| – Cargo Box Height | 2.1m |
| Cab Parameters | |
| – Passenger Capacity | 3 people |
| – Seat Rows | Single |
| Chassis Parameters | |
| – Front Axle Load Capacity | 1875kg |
| – Rear Axle Load Capacity | 2620kg |
| Tires | |
| – Tire Specification | 7.00R16LT 8PR, 7.00R16LT 10PR |
| – Number of Tires | 6 |
| Control Configuration | |
| – ABS Anti-lock Braking System | ● |
| Interior Configuration | |
| – Multi-function Steering Wheel | ● |
| – Power Windows | ● |
| – Power Rearview Mirror | ● |
| – Reverse Camera | ● |
| – Electronic Central Locking | ● |
| Lighting Configuration | |
| – Front Fog Lights | ● |
| – Daytime Running Lights | ● |
