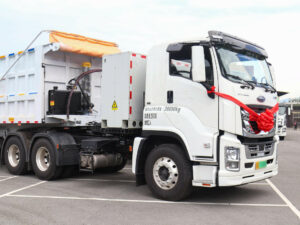

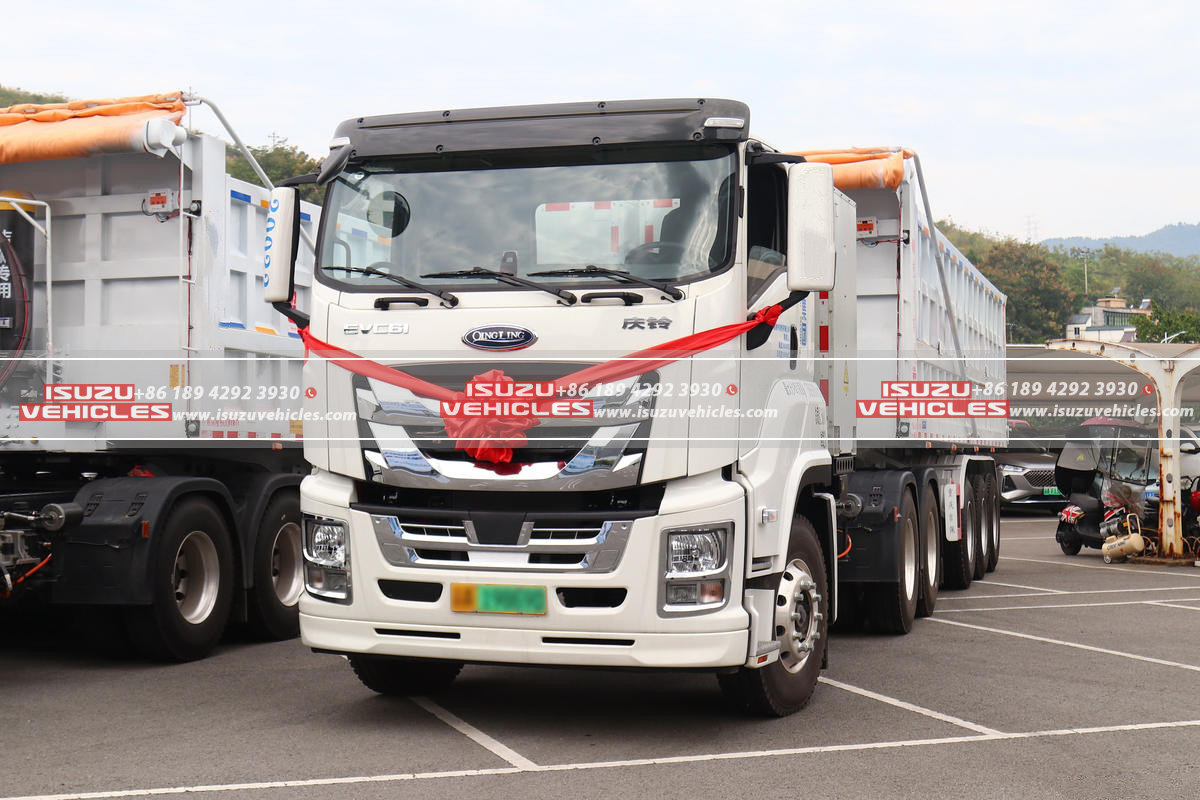

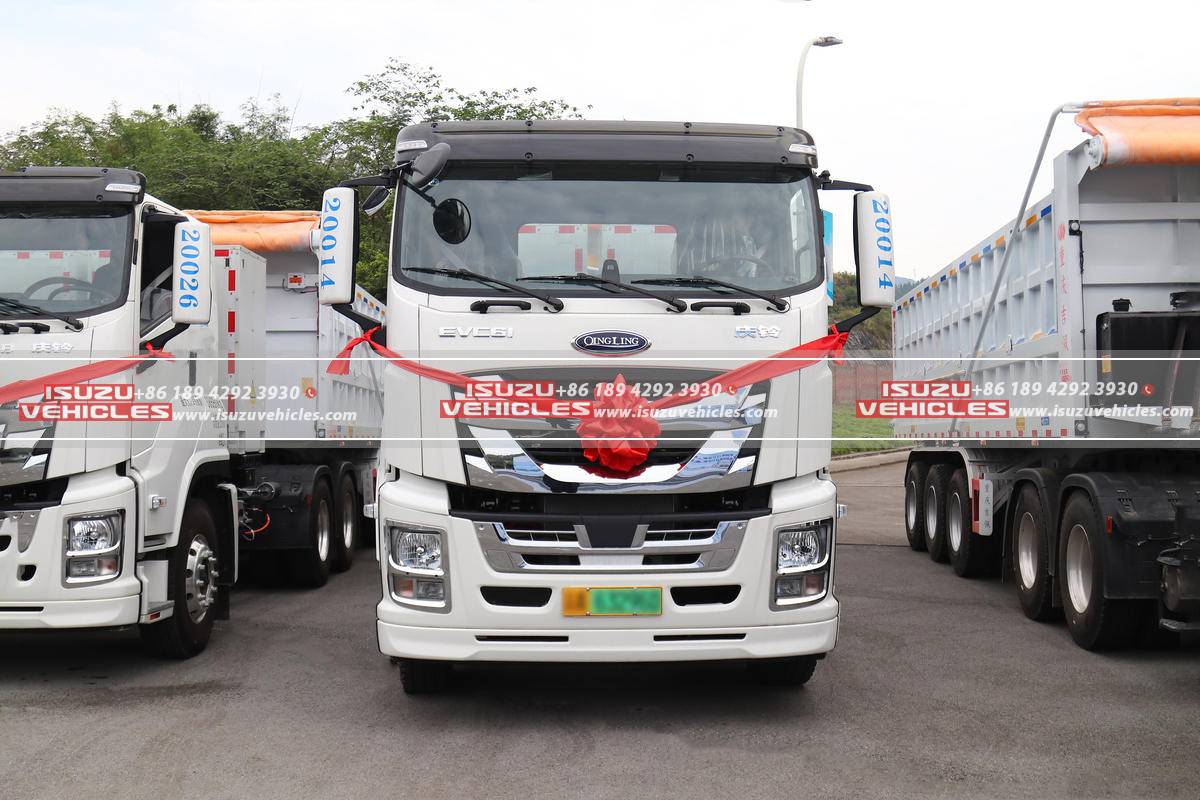

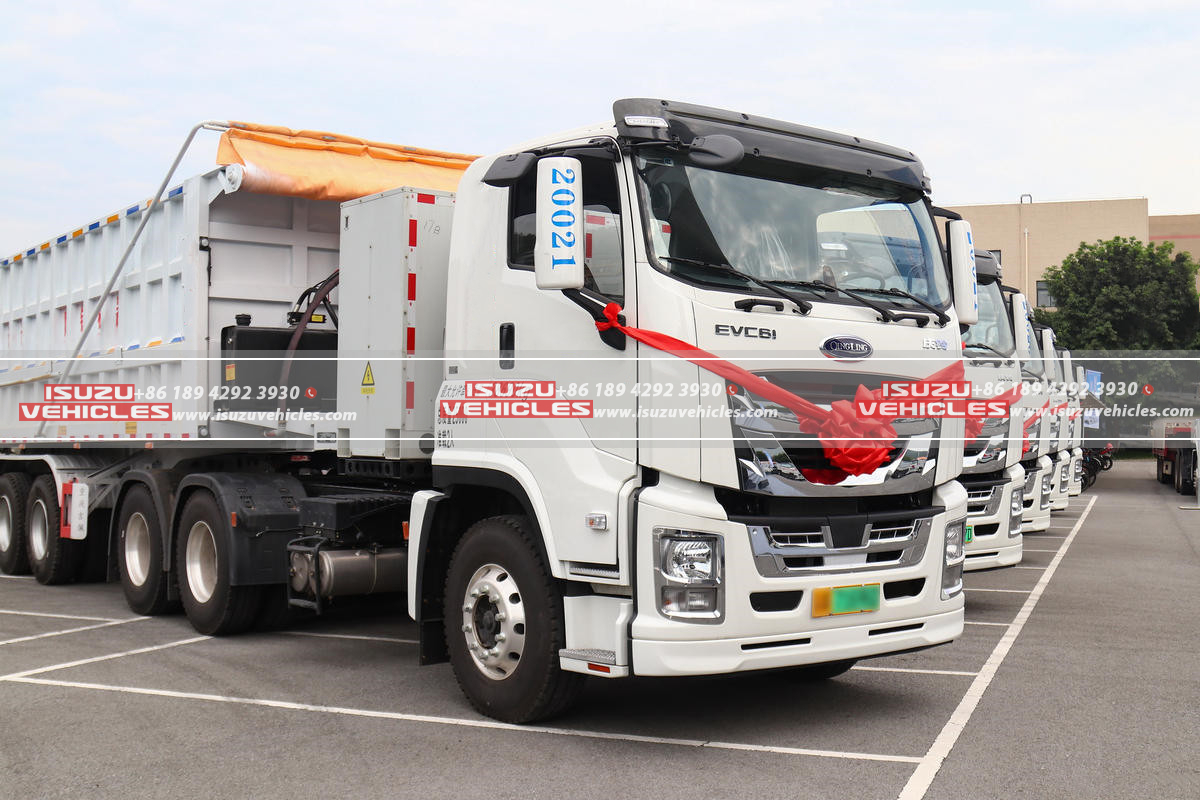

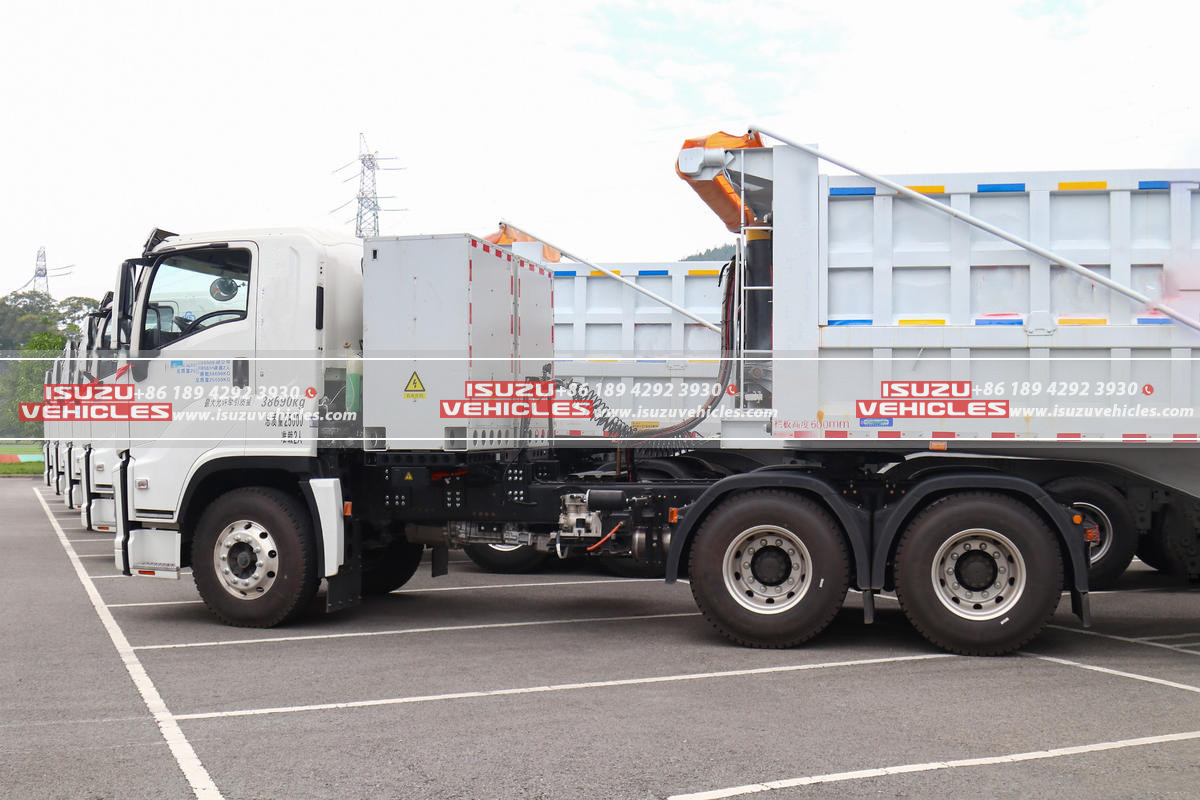

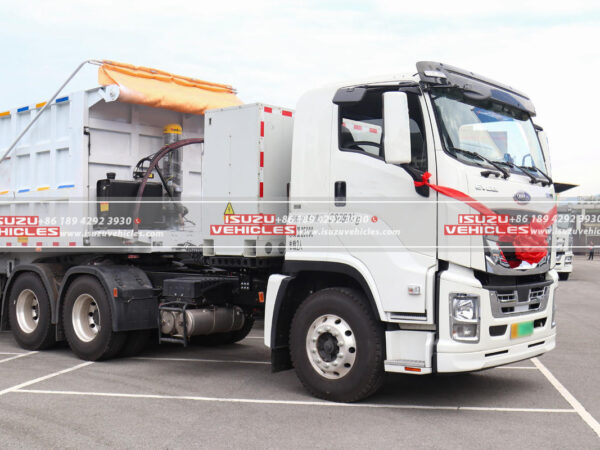

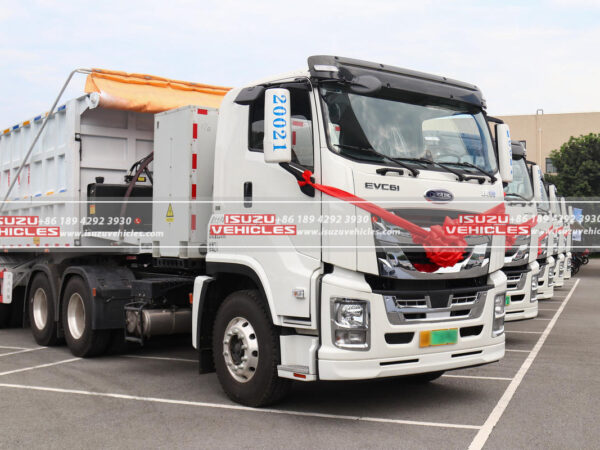

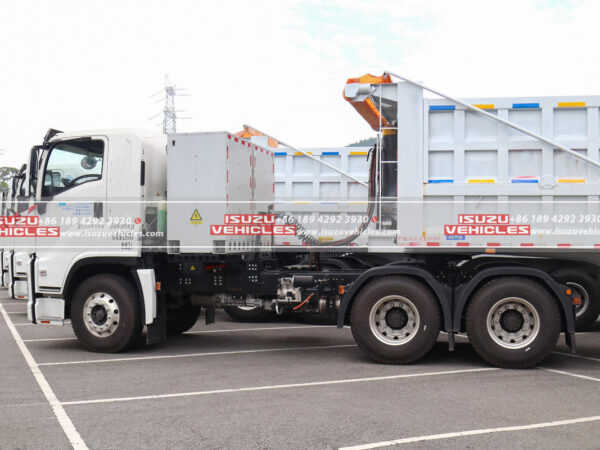

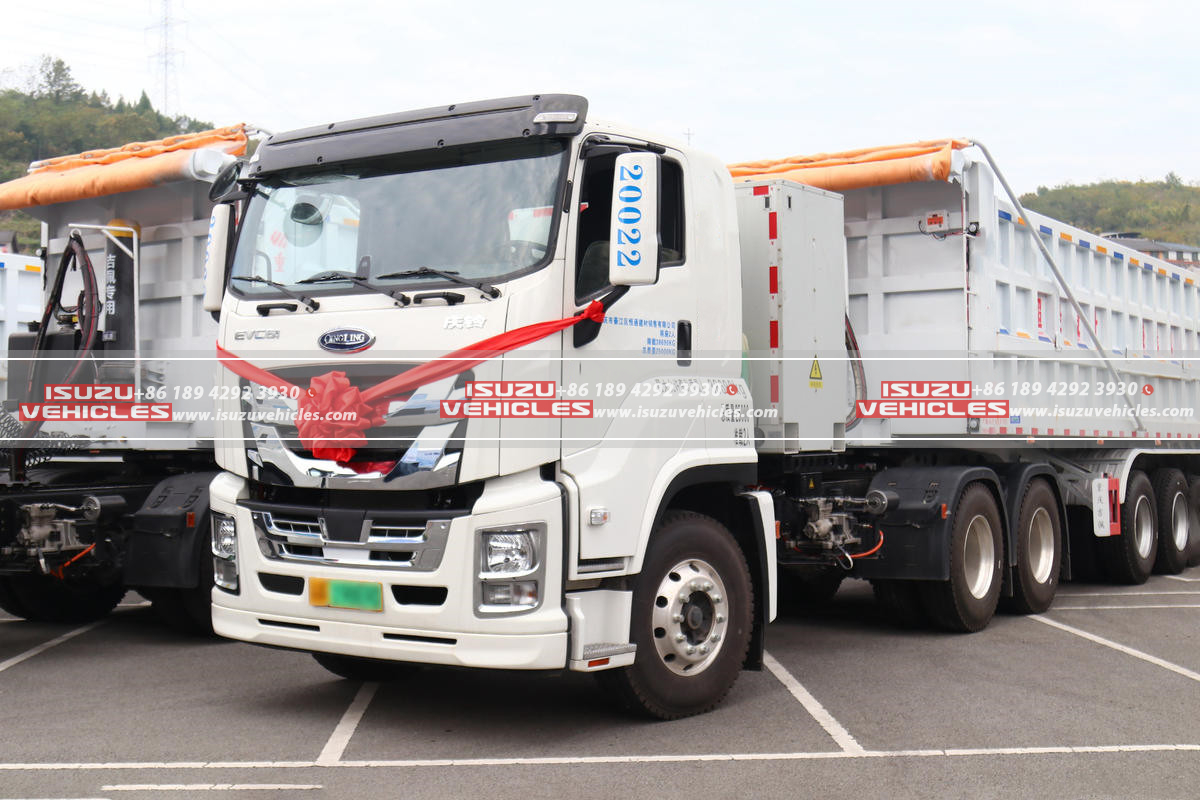

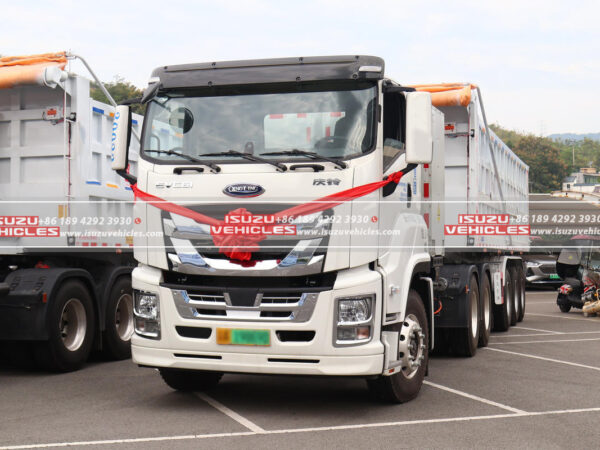

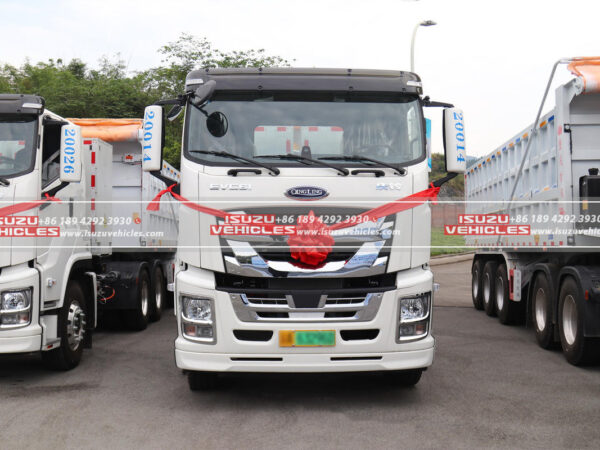

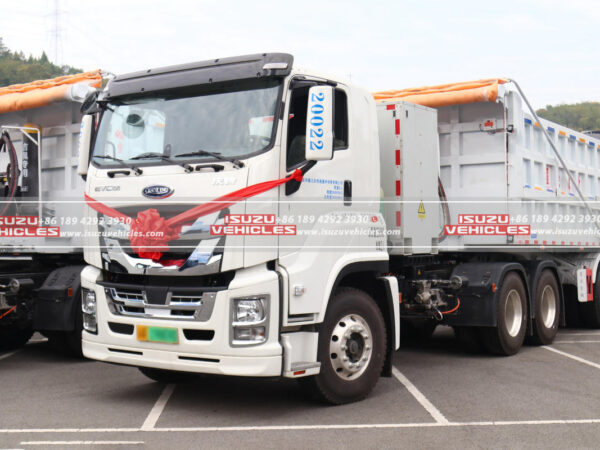

ISUZU Electric 6*4 Tractor Truck
The ISUZU Electric 6×4 Tractor Truck is a heavy-duty electric vehicle designed to revolutionize freight transportation with its zero-emission performance and exceptional hauling capabilities. Built with a 6×4 drive system and a 3800+1370 mm wheelbase, this truck offers unparalleled stability and traction, making it ideal for long-haul logistics and heavy-duty applications. With a 25-ton gross vehicle weight and an impressive 38.69-ton towing capacity, it is engineered to handle the most demanding loads while reducing environmental impact.
Manufactured in Chongqing, China, the ISUZU Electric Tractor Truck is powered by a permanent magnet synchronous motor from Green Control, delivering a peak power of 360 kW and a rated power of 240 kW. Its pure electric drivetrain ensures quiet operation and lower operating costs, making it a sustainable choice for modern freight operations. Whether for cross-country logistics or industrial transport, this truck is built to deliver power, efficiency, and reliability.
Features
Performance and Electric Drivetrain
The ISUZU Electric Tractor Truck is equipped with a TZ410XS-LKM2001 rear motor from Green Control, featuring permanent magnet synchronous technology for high efficiency and durability. The motor delivers a peak power output of 360 kW, ensuring strong performance even under heavy loads, while the 240 kW rated power provides consistent energy efficiency. The pure electric drivetrain eliminates emissions, making it an eco-friendly solution for freight transport.
Design and Dimensions
The truck boasts a 7.31-meter body length, 2.54-meter width, and 3.35-meter height, offering a robust and aerodynamic design. The 2065 mm front track width and 1875 mm rear track width ensure stability and control, even on challenging terrains. The 10 tires, sized 295/80R22.5 18PR, provide excellent traction and durability, while the 7000 kg front axle load capacity and 18,000 kg rear axle load capacity guarantee stability under heavy loads.
Battery and Charging
The ISUZU Electric Tractor Truck is powered by a CATL lithium iron phosphate (LFP) battery, known for its high energy density and long lifespan. This advanced battery technology ensures a reliable range and fast charging capabilities, making it suitable for long-distance operations. The zero-emission design aligns with global sustainability goals, reducing the carbon footprint of freight transport.
Safety and Comfort
Safety is a priority in the ISUZU Electric Tractor Truck, with ABS anti-lock braking as a standard feature, ensuring reliable stopping power in all conditions. The spacious cabin comfortably seats up to two passengers, with ergonomic seating and a driver-focused layout designed for long-haul comfort. The quiet electric motor reduces noise pollution, creating a more pleasant driving experience.
The ISUZU Tractor Truck is a cutting-edge solution for businesses seeking to combine heavy-duty performance with sustainable technology. With its powerful electric drivetrain, robust design, and advanced safety features, this truck is designed to meet the demands of modern logistics while paving the way for a greener future.
SPECIFICATIONS:
| Specification | Data |
|---|---|
| Drive Form | 6X4 |
| Wheelbase | 3800+1370mm |
| Body Length | 7.31 meters |
| Body Width | 2.54 meters |
| Body Height | 3.35 meters |
| Front/Rear Track | Front: 2065mm; Rear: 1875/1875mm |
| Gross Vehicle Weight (GVW) | 10.18 tons |
| Total Mass | 25 tons |
| Towing Capacity | 38.69 tons |
| Maximum Speed | 89 km/h |
| Place of Origin | Chongqing |
| Tonnage Class | Heavy Duty Truck |
| Energy Type | Pure Electric |
| Motor | |
| – Rear Motor Brand | Lv Kong |
| – Rear Motor Model | TZ410XS-LKM2001 |
| – Motor Type | Permanent Magnet Synchronous Motor |
| – Peak Power | 360 kW |
| – Total Rated Power | 240 kW |
| Fuel Type | Pure Electric |
| Battery/Charging | |
| – Battery Brand | CATL |
| – Battery Type | Lithium Iron Phosphate Battery |
| Cab Parameters | |
| – Passenger Capacity | 2 people |
| Chassis Parameters | |
| – Front Axle Load Capacity | 7000 kg |
| – Rear Axle Load Capacity (Tandem Axle) | 18000 kg |
| Tires | |
| – Number of Tires | 10 |
| – Tire Specification | 295/80R22.5 18PR |
| Control Configuration | |
| – ABS Anti-Lock Braking System | Yes |
