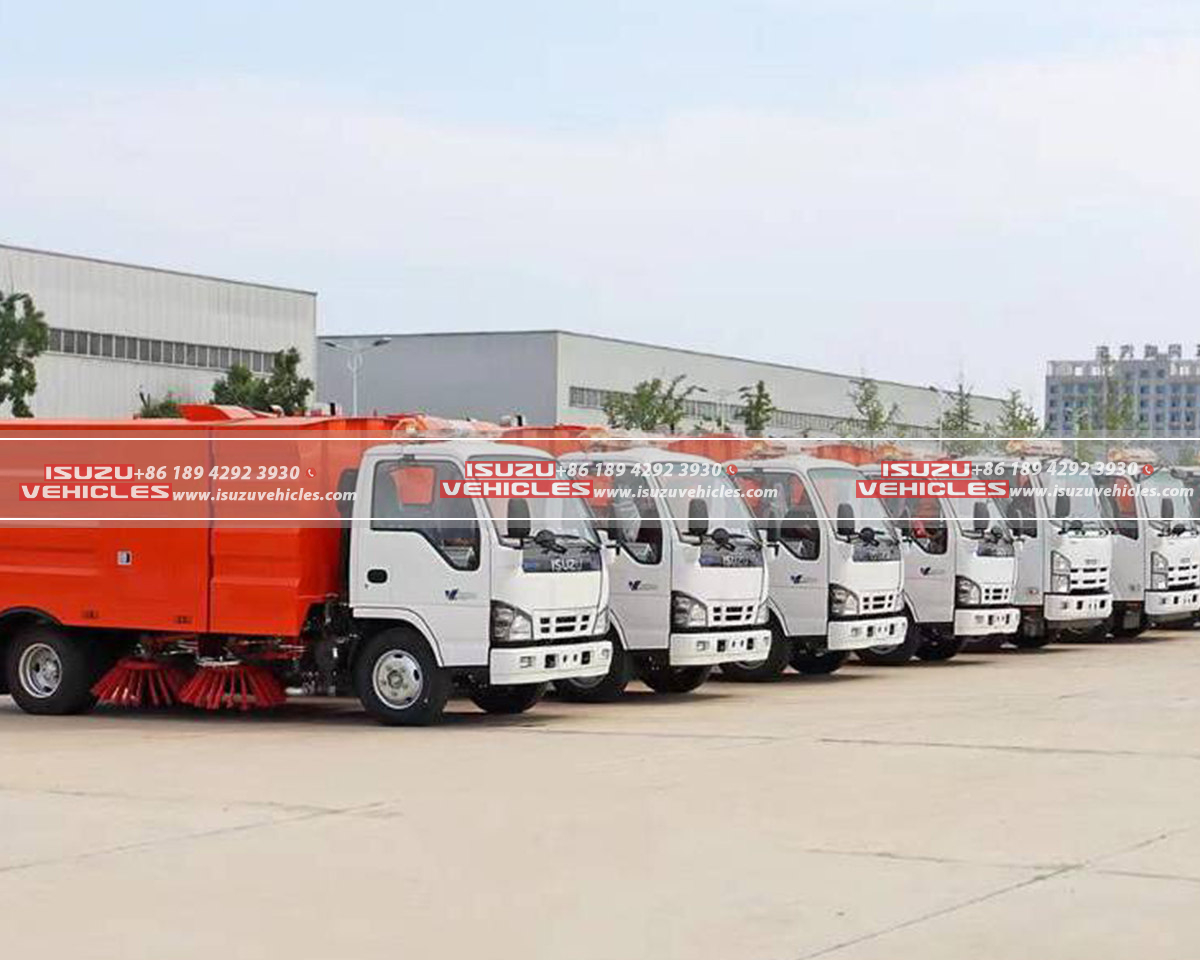

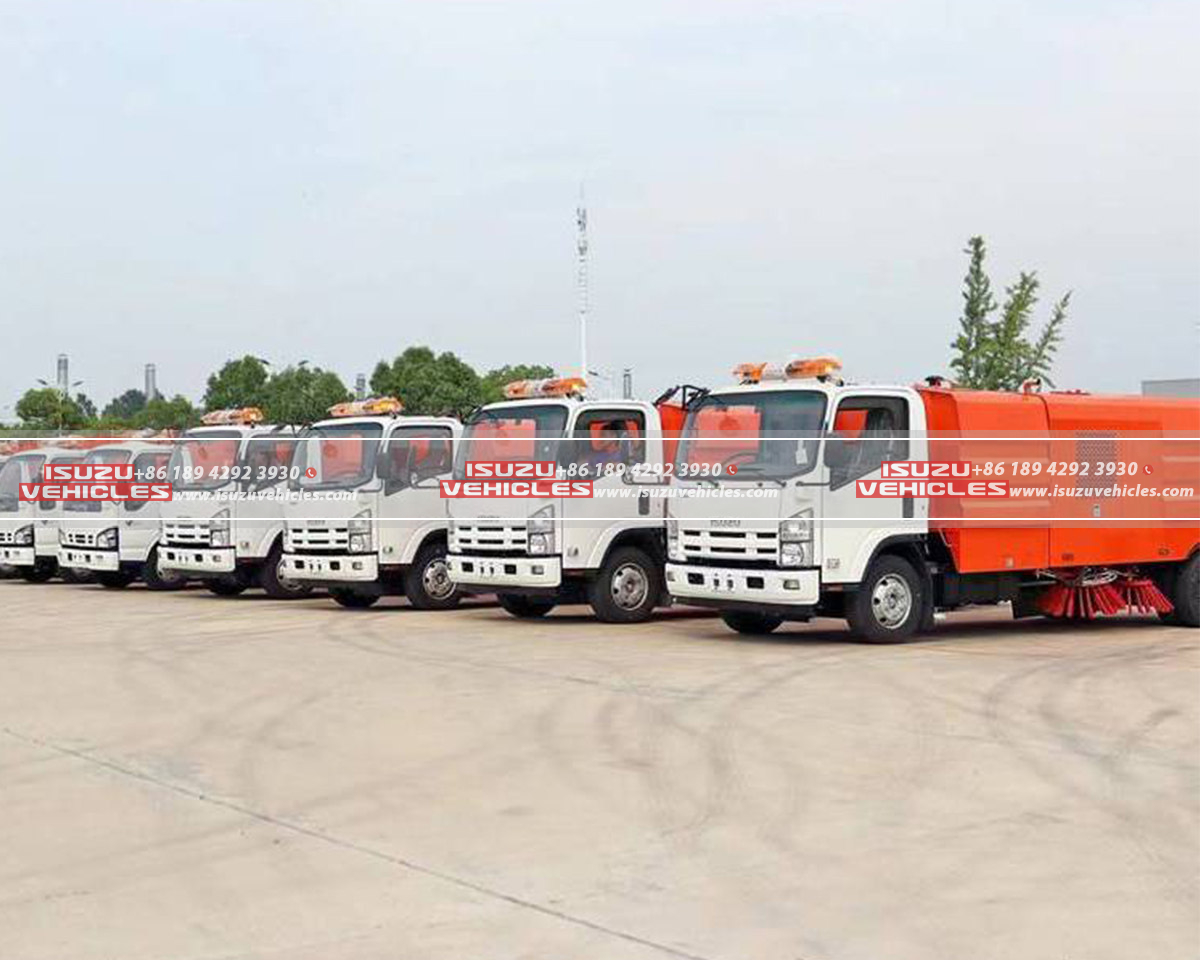

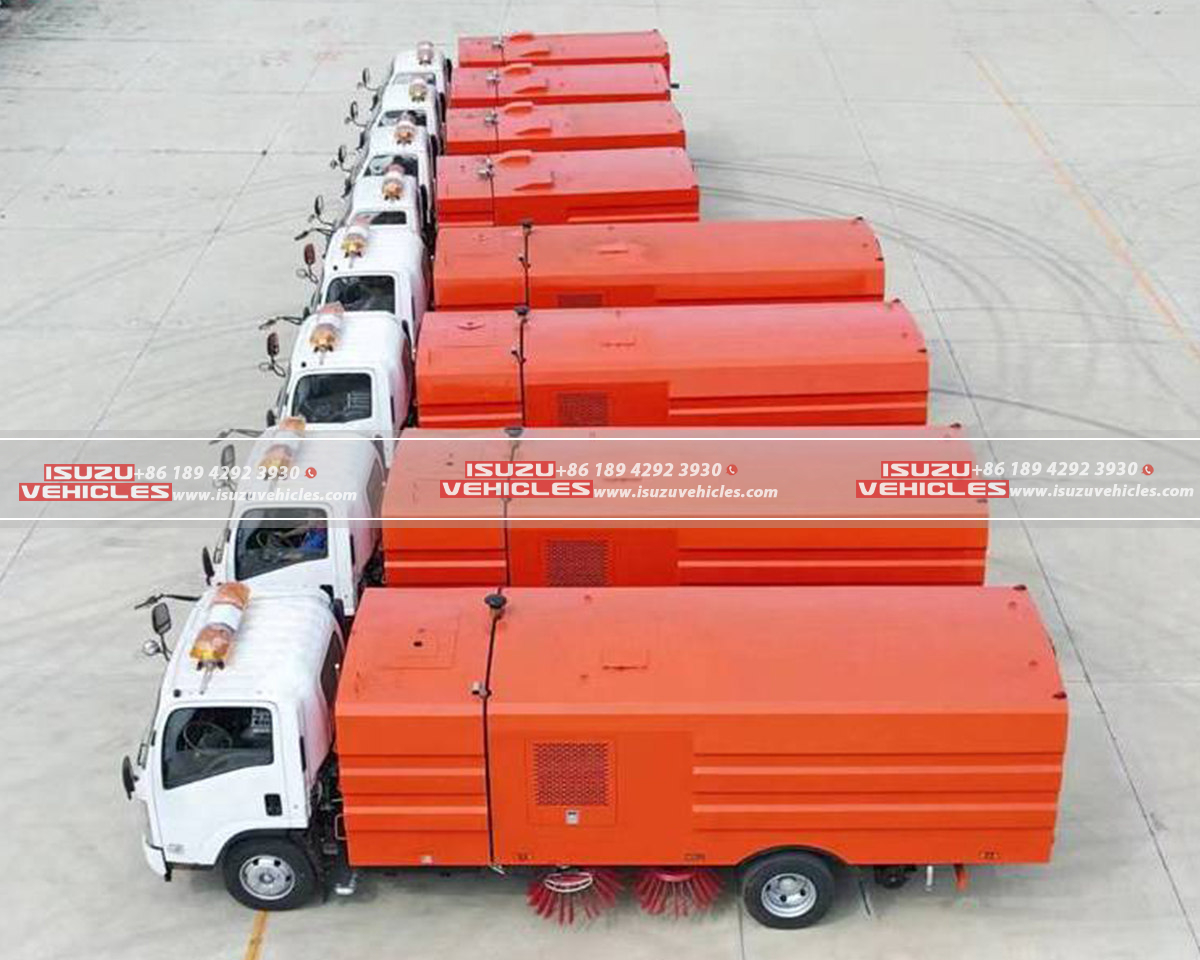

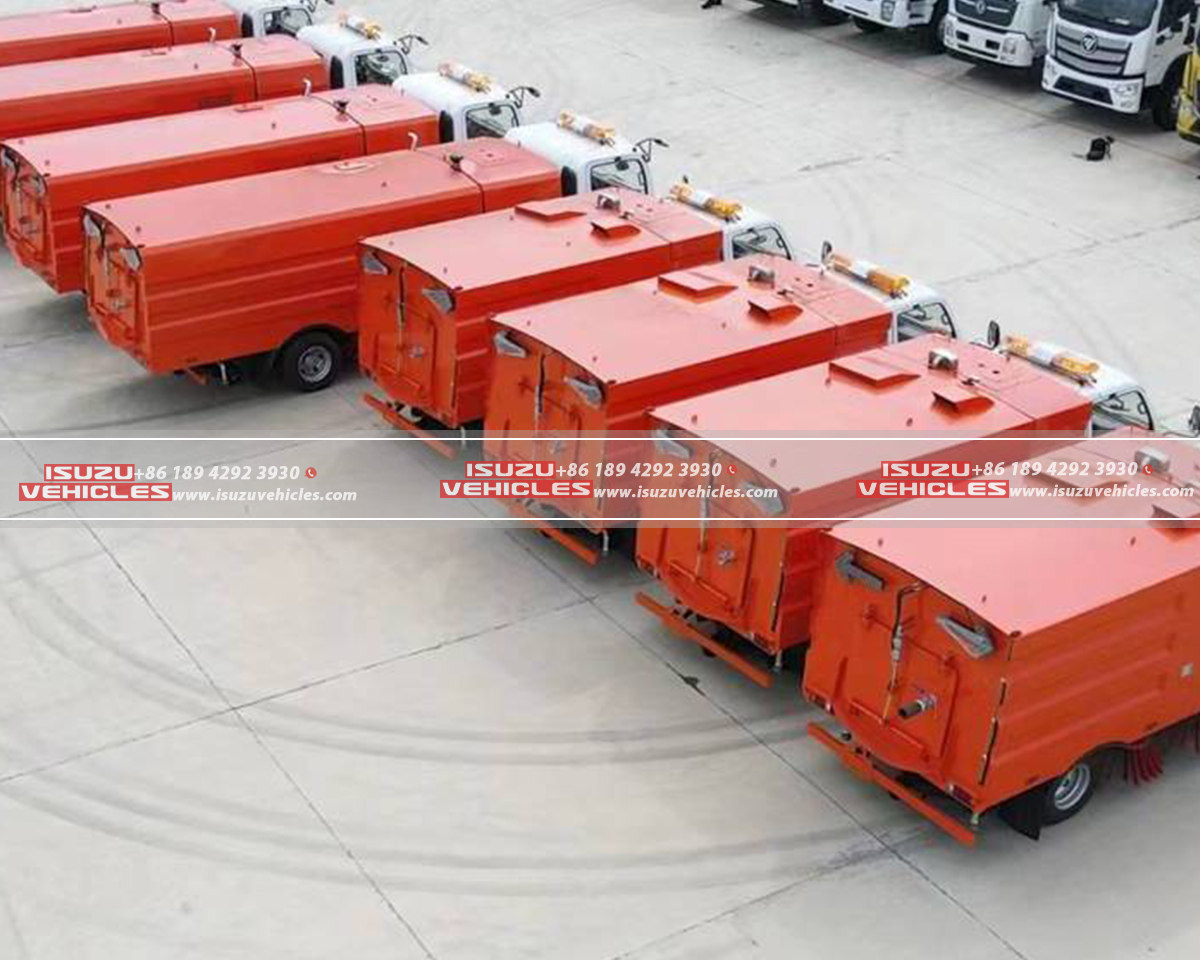

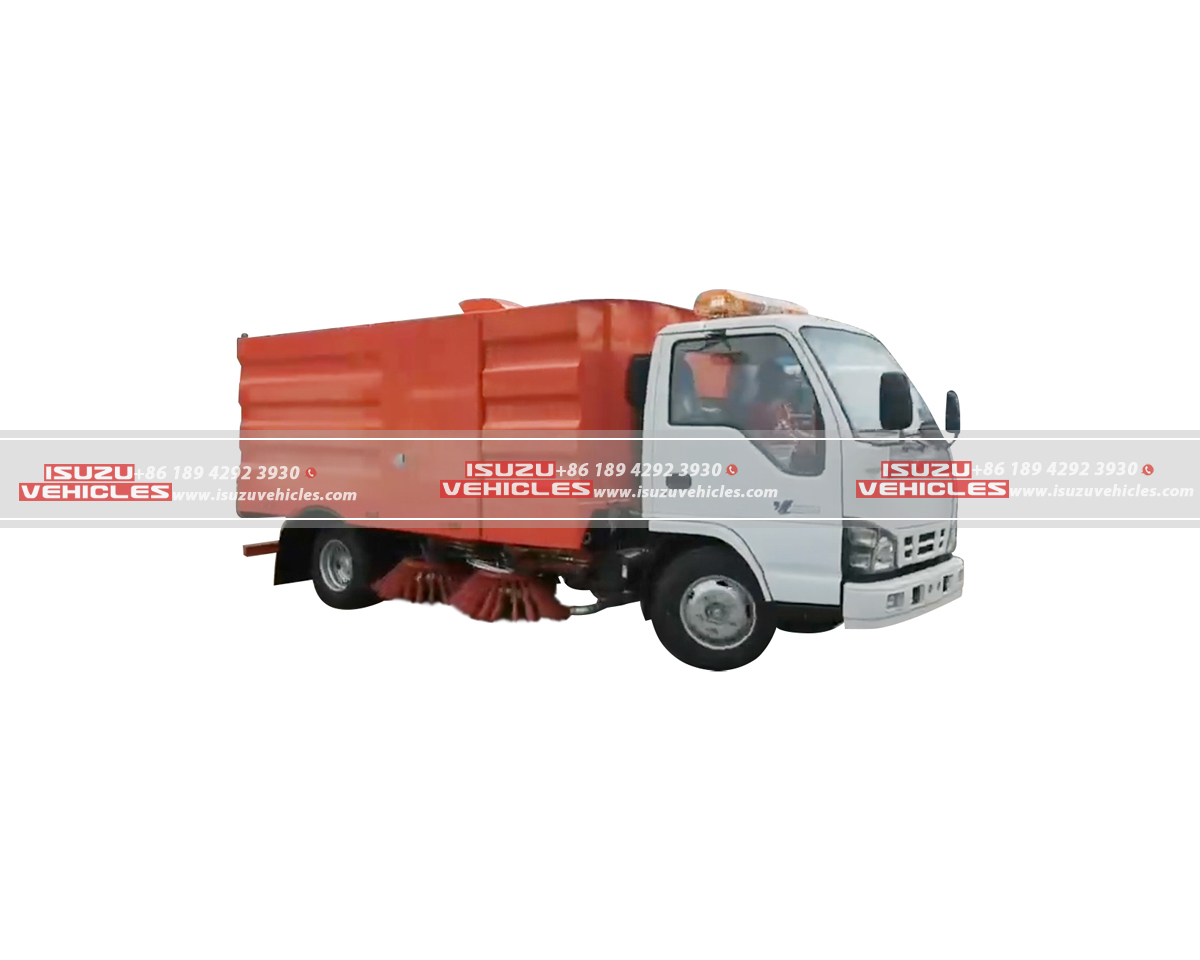

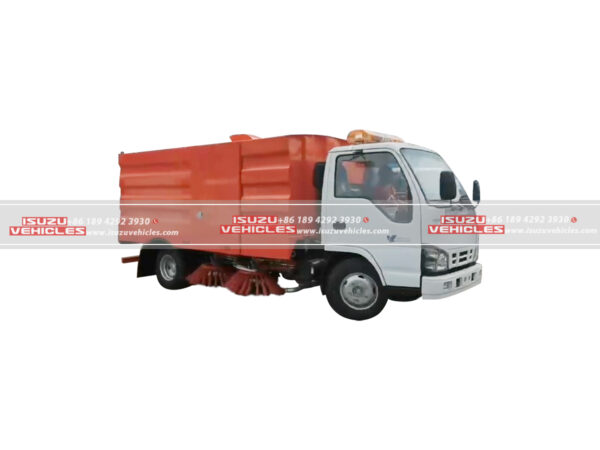

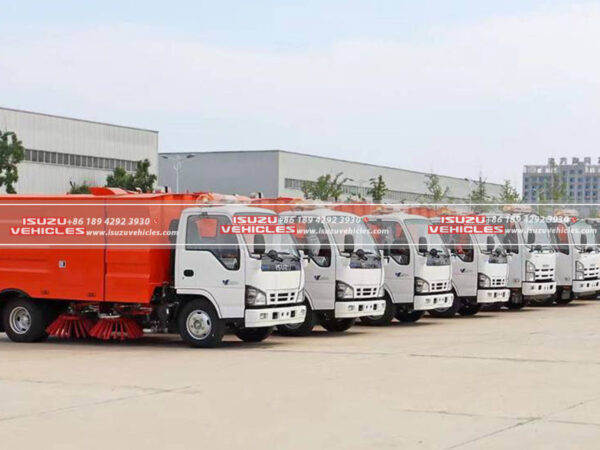

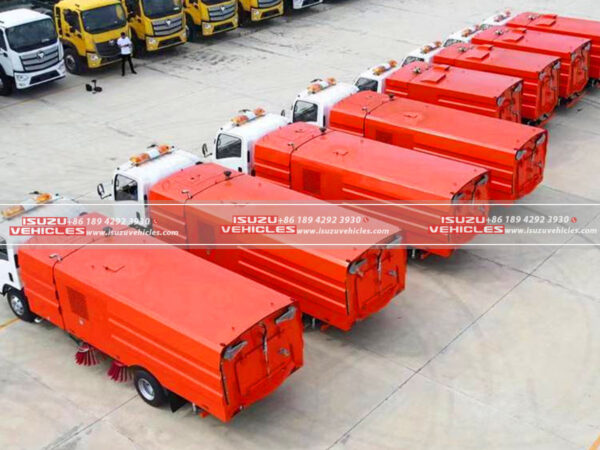

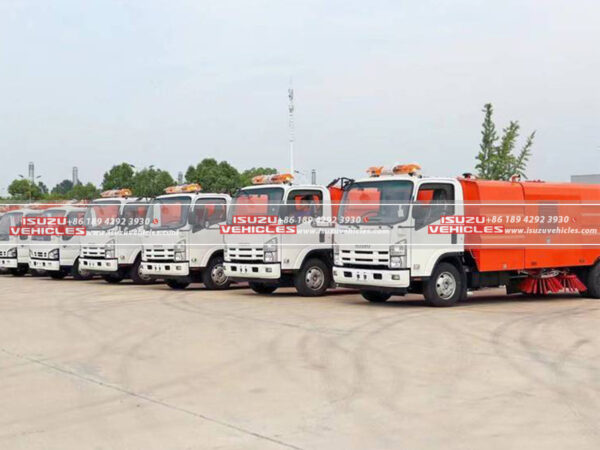

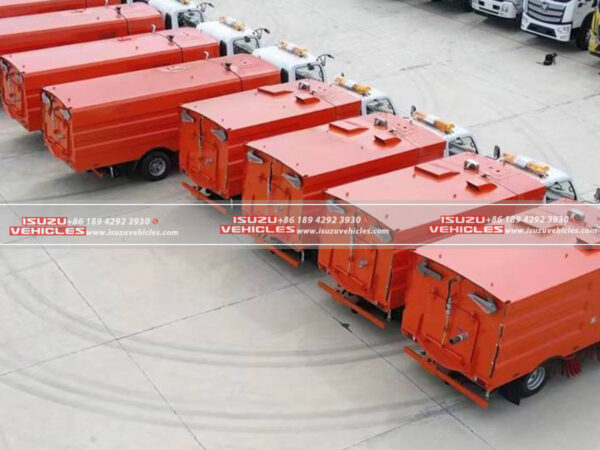

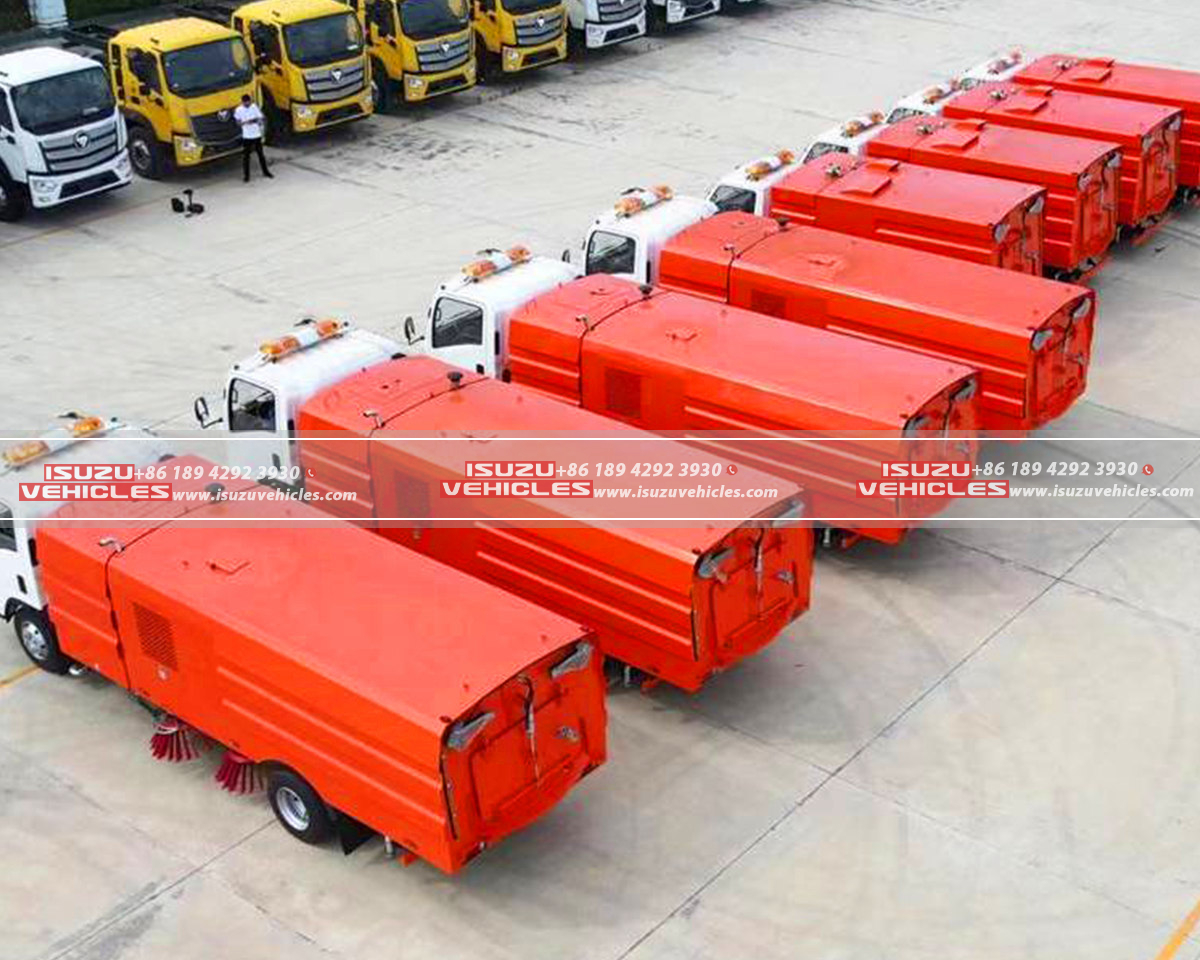

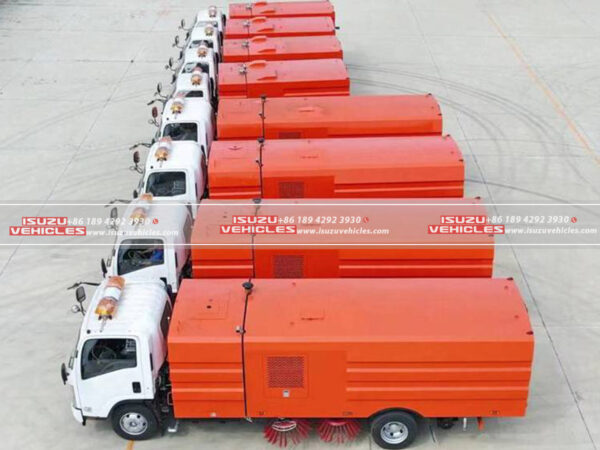

ISUZU 8CBM Road Cleaning Truck
700P Chassis Urban Agility
Built on the ISUZU 700P chassis, this ISUZU 8CBM Road Cleaning Truck combines maneuverability with heavy-duty performance. Its compact dimensions of 7,160×2,200×2,750mm and 3,815mm wheelbase support a gross vehicle weight of 9,995kg while retaining a curb weight of 6,970kg for optimal payload efficiency. The 4+2 drive wheel configuration with 8.25R20 tires ensures stability on urban roads and uneven terrain.
Euro 5-Compliant Powerhouse
Driven by the ISUZU 4HK1-TC51 engine, this ISUZU sweeper truck delivers 190HP (141kW) @ 2,600rpm and a peak torque of 510N·m @ 1,600rpm, engineered for high-efficiency cleaning operations. The intercooled turbocharged 4-cylinder design paired with an ISUZU/MLD manual transmission (6F+1R) ensures seamless power delivery and fuel economy in repetitive tasks.
Ergonomic Operator Cabin
The hydraulic power-steered cabin accommodates 1 driver + 2 passengers, featuring intuitive controls and enhanced visibility for precision in congested environments.
Part 2: Features
8CBM Dual-Function Tank System
Equipped with an 8CBM stainless steel 304 tank, the system integrates a 6m³ garbage compartment and a 2,000L water reservoir for simultaneous debris collection and dust suppression. The corrosion-resistant material ensures durability in harsh weather and chemical exposure.
High-Efficiency Sweeping & Suction
Four motor-driven disc brooms (900mm diameter) achieve a sweeping width of 2.6–3.2m and a max cleaning capacity of 60,000 m²/h. The full-floating suction nozzle with a 200mm hydraulic port captures debris ≥100mm, while the centrifugal blower (2,600–2,900r/min) ensures debris-free surfaces even at high speeds (3–20km/h).
JMC-Powered Auxiliary Systems
A JMC 93HP auxiliary engine drives the blower and hydraulic systems, enabling uninterrupted operation during extended cleaning cycles.
Operational Safety & Adaptability
Anti-slip hydraulic controls and reinforced tire configurations enhance stability during high-speed sweeping and debris handling. The modular body design (quick-release panels, rear ejection system) simplifies maintenance and waste discharge.
Environmental Compliance
Euro 5 emission standards align with global sustainability regulations, minimizing environmental impact without compromising performance.
SPECIFICATIONS
| GENERAL | |
| Make/Model | ISUZU / SS08QL130L5 |
| Drive Type | 4×2 Left-Hand Drive |
| Overall Dimension
(L x W x H) |
7,160×2,200×2,750 (mm) |
| Gross Vehicle Weight | 9,995kg |
| Curb Weight | 6,970kg |
| Wheelbase | 3,815mm |
| Chassis Designed | ISUZU 700P |
| Cabin | Hydraulic power steering type.
1 driver+2 passengers |
| Drive wheel(Tires ) | 4+2 and one spare (total 7 wheels) |
| Tire Size | 8.25R20 |
| ENGINE | |
| Make / Model | ISUZU / 4HK1-TC51 |
| Type | 4 cylinders in line, 4 strokes direct injection, water cooling, Intercooled Turbocharged |
| Displacement | 5.193L |
| Nominal Power | 190HP (141kw) @ 2600rpm |
| Peak Torque | 510N.m@1,600rpm |
| Emission Standard | Euro 5 |
| TRANSMISSION | |
| Make / Model | ISUZU/MLD |
| Type | Diesel |
| Operation | Manual |
| Number of Speeds | 6F+1R |
| BODY SYSTEM | |
| Tanker Capacity | 8CBM(6m³ garbage tank+2,000L water tank) |
| Material | Stainless steel 304 |
| Auxiliary Engine | |
| Brand | JMC |
| Power | 93HP |
| AIR BLOWER | |
| Type | High-pressure, centrifugal, sweeping truck-specific used blower |
| Working Speed | 2600～2900r/min |
| Driving Mode | Drive by an ancillary engine, automatic clutch, V belt powered |
| SWEEPING EQUIPMENT | |
| Type | Four-disc typed brooms equipped between the front and rear axle, symmetric on the right and left side of the truck driven by motors. |
| Sweep Width | 2.6~3.2m. |
| Sweep Diameter | 900mm |
| Sweep Speed | 3~20km/h |
| Max. Cleaning Capacity | 60000 m2/h |
| SUCTION EQUIPMENT | |
| Type | Full-floating suction nozzle, independent forward operation, hydraulic raise & lower 200mm diameter suction port |
| Maximum Inhalation Particle Size | ≥100mm |
