Introduction: Six Decades of Firefighting Excellence
With over 60 years of specialized engineering heritage, ISUZU stands as the global leader in fire apparatus innovation, delivering mission-critical solutions to fire brigades across 90+ countries. Our expertise spans the full spectrum of firefighting technology:
- Core Models: Water tenders (rapid-response units), dual-agent water/foam systems, dry powder suppression trucks, aerial ladders (up to 68m reach), airport rescue vehicles (ARFF), and multi-role rescue platforms.
- Engineering Synergy: ISUZU’s Integrated Firefighting Platform (IFP) ensures seamless fusion of heavy-duty chassis and modular superstructures, achieving 99.1% operational readiness in third-party validations.
Application: Mastery Across Fire Classes

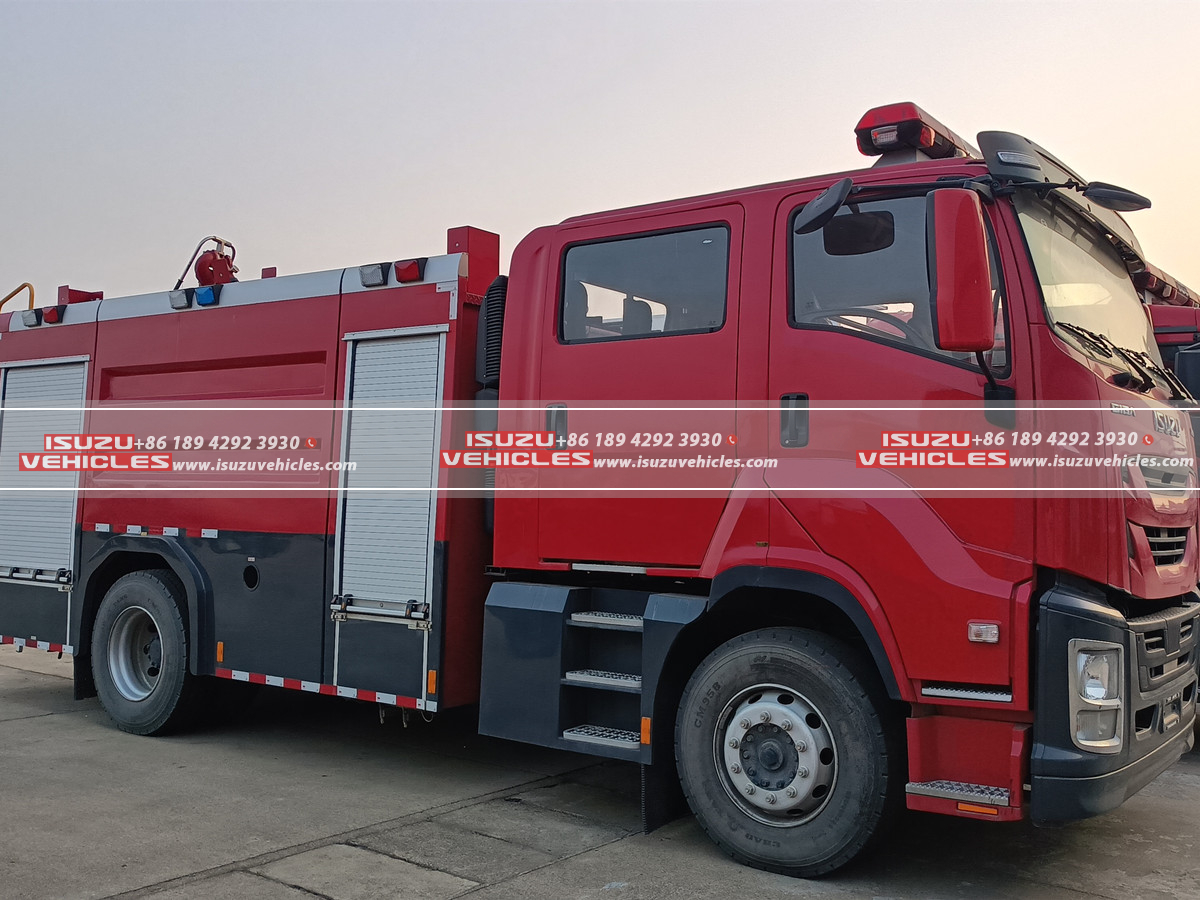

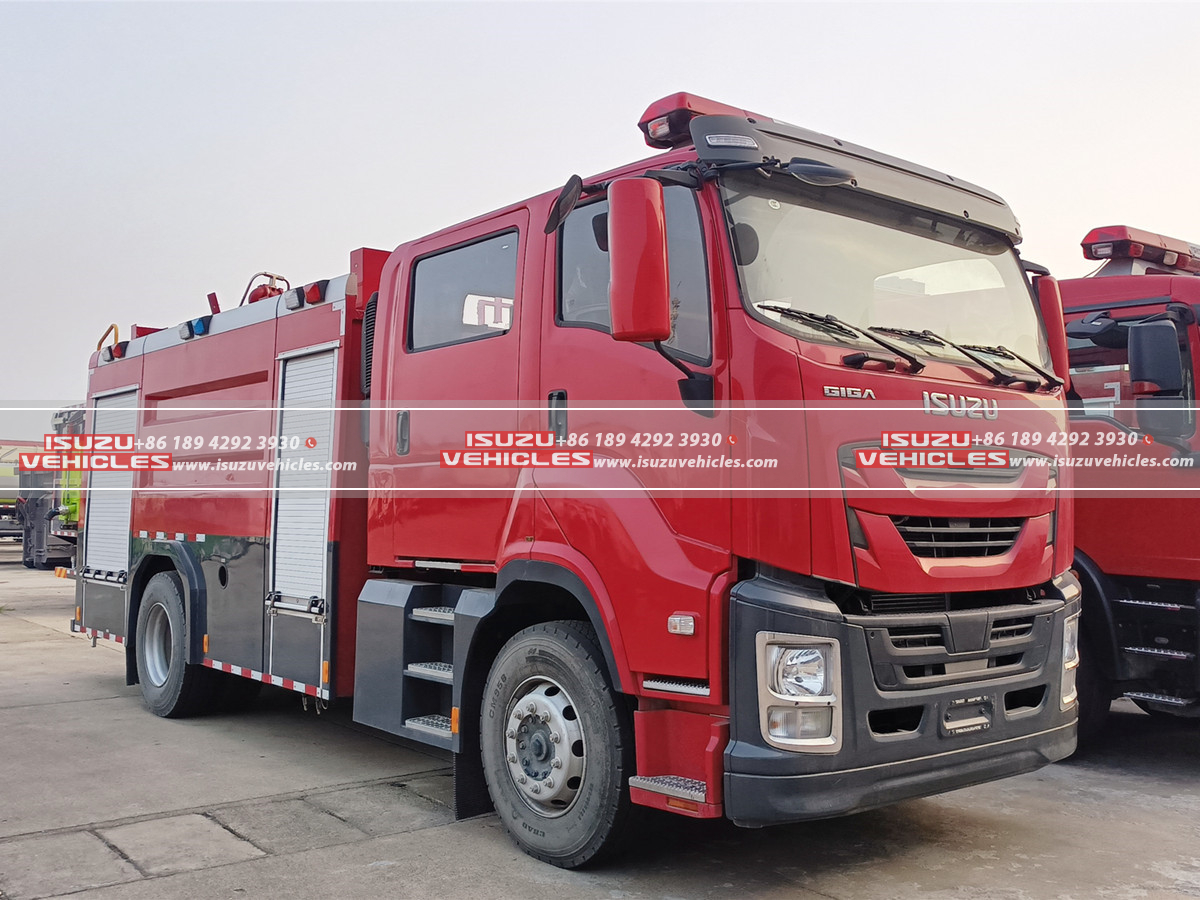

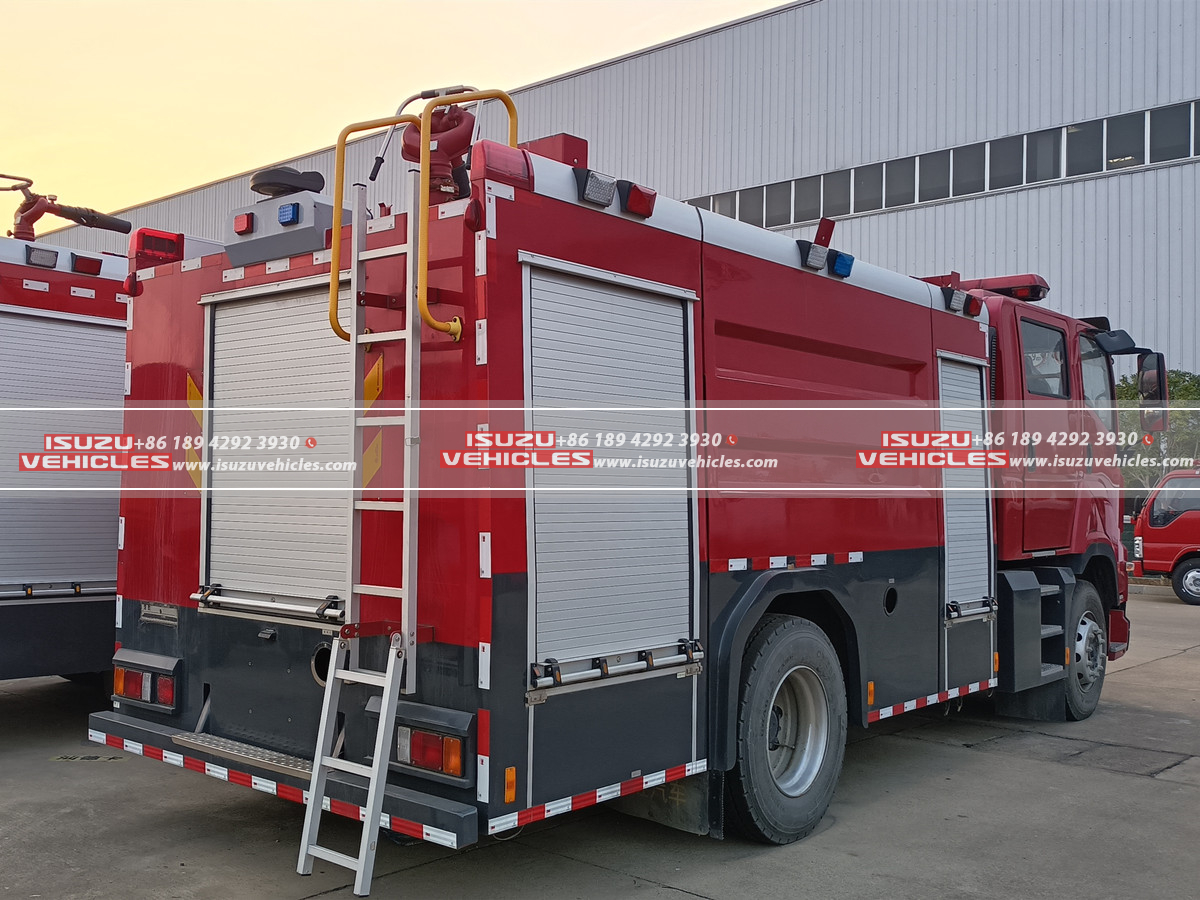

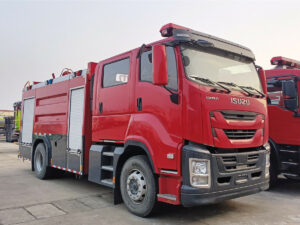

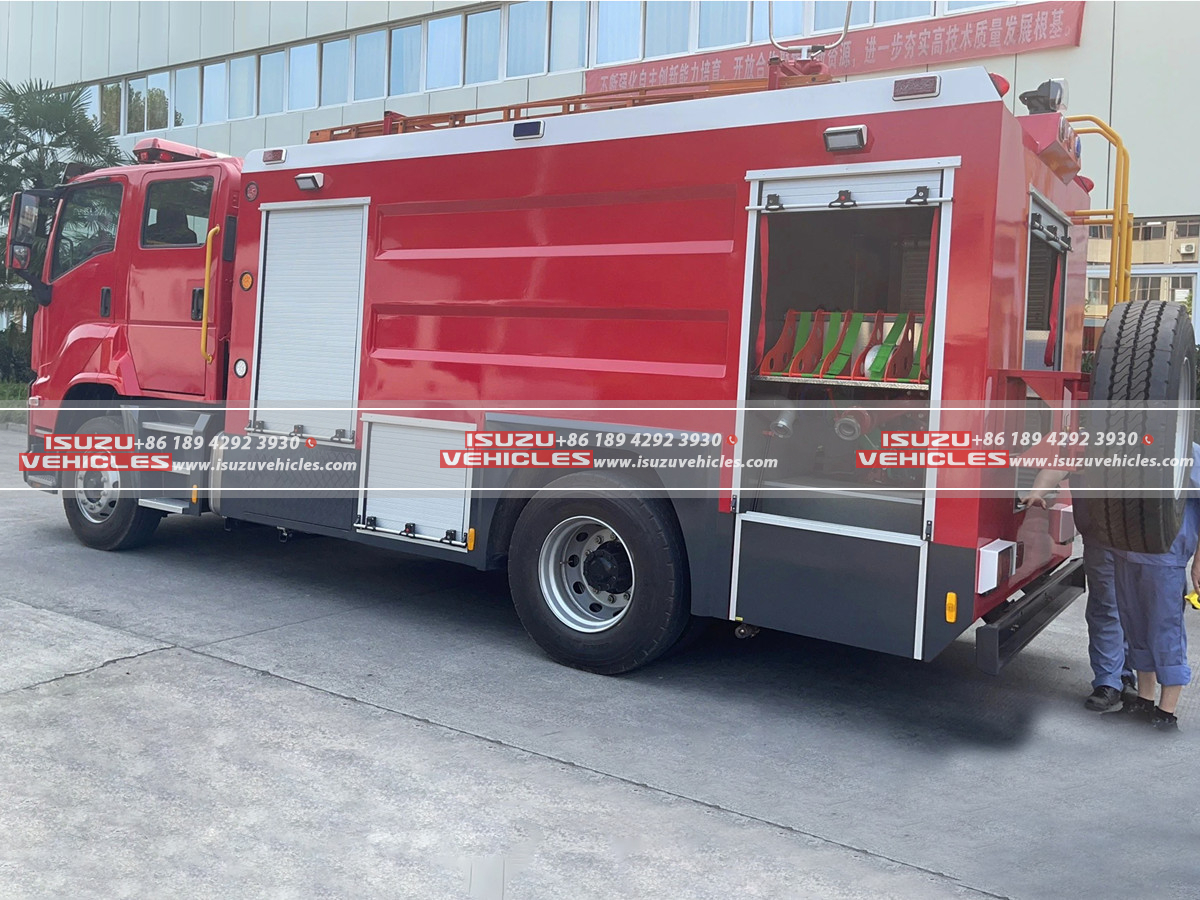

The ISUZU 4×4 Water & Foam Fire Truck dominates as the most versatile firefighting asset, engineered for rapid response in:
- Urban Complexes: High-rise residential fires, underground parking emergencies.
- Industrial Zones: Petrochemical spills, lithium battery thermal runaway incidents.
- Critical Infrastructure: Highway tunnel blazes, railway fuel tanker accidents.
Fire Suppression Capabilities:
- Class A (Solid Combustibles):
- Deploys CAFS (Compressed Air Foam System) with 0.3%-1% foam ratios to smother wood, textiles, and plastics.
- Class B (Flammable Liquids):
- Neutralizes gasoline, jet fuel, and solvents using AFFF 3%/6% alcohol-resistant foam (95% vapor suppression in <15 sec).
- Class C (Gas Emergencies):
- Integrates BC dry chemical auxiliary systems (optional) for LPG/CNG leak control with electrical isolation safety.
Structural Design: Precision-Engineered for Tactical Agility
Built to ISO 17840-2 standards, the ISUZU 6000L model features a 7-module architecture:
| Component | Technical Specifications |
|---|---|
| Chassis | 4×4 chassis with 12mm high-tensile steel (ASTM A572 Grade 50) |
| Superstructure | 5083-H111 aluminum alloy, IP67-rated corrosion resistance |
| PTO System | Hydraulic split-shaft drive (98% energy efficiency) |
| Fluid Capacity | 4,500L water + 1,500L foam (EN 1568-3 certified) |
| Foam Proportioner | Digital metering (0.1%-6% adjustable) + auto-flush |
| Fire Monitor | 360° remote turret (55m range, -30°/+75° elevation) |
| Pump System | CNP CHD60/80 centrifugal pump (60 L/s @ 1.2MPa) |
Chassis Performance: Unmatched Off-Road Dominance
The 4×4 chassis redefines extreme-terrain firefighting through three innovations:
- Power & Mobility
- TerrainConquer™ 4WD: Locking differentials + 37° approach angle for 40% gradient traversal.
- 6HK1-TCG51 Engine: 320HP turbo diesel (1,200 N·m torque @ 1,600 rpm), Euro VI-D compliant.
- Durability & Safety
- High-Strength Frame: Robot-welded crossmembers withstand 2.5G vertical impacts (ECE R29 certified).
- Adaptive Suspension: 4-mode damping (Urban/Off-road/Emergency/Loading) with 0.2-sec response.
- Operator-Centric Design
- Command Console: 12-inch touchscreen with thermal imaging, drone integration, and BIM mapping.
- ROPS/FOPS Cab: NBC air filtration optional for CBRN scenarios.
SPECIFICATIONS:
| General | |||
| Brand | ISUZU | ||
| Overall dimension | 8490×2530×3550mm | ||
| GVW | 19300KG | ||
| Tare weight | 5090kg | ||
| Emission standard | Euro5 | ||
| Front/Rear overhang | 1335/1735mm | ||
| Leaf Spring | 8/6+5 | ||
| High speed | 95km/h | ||

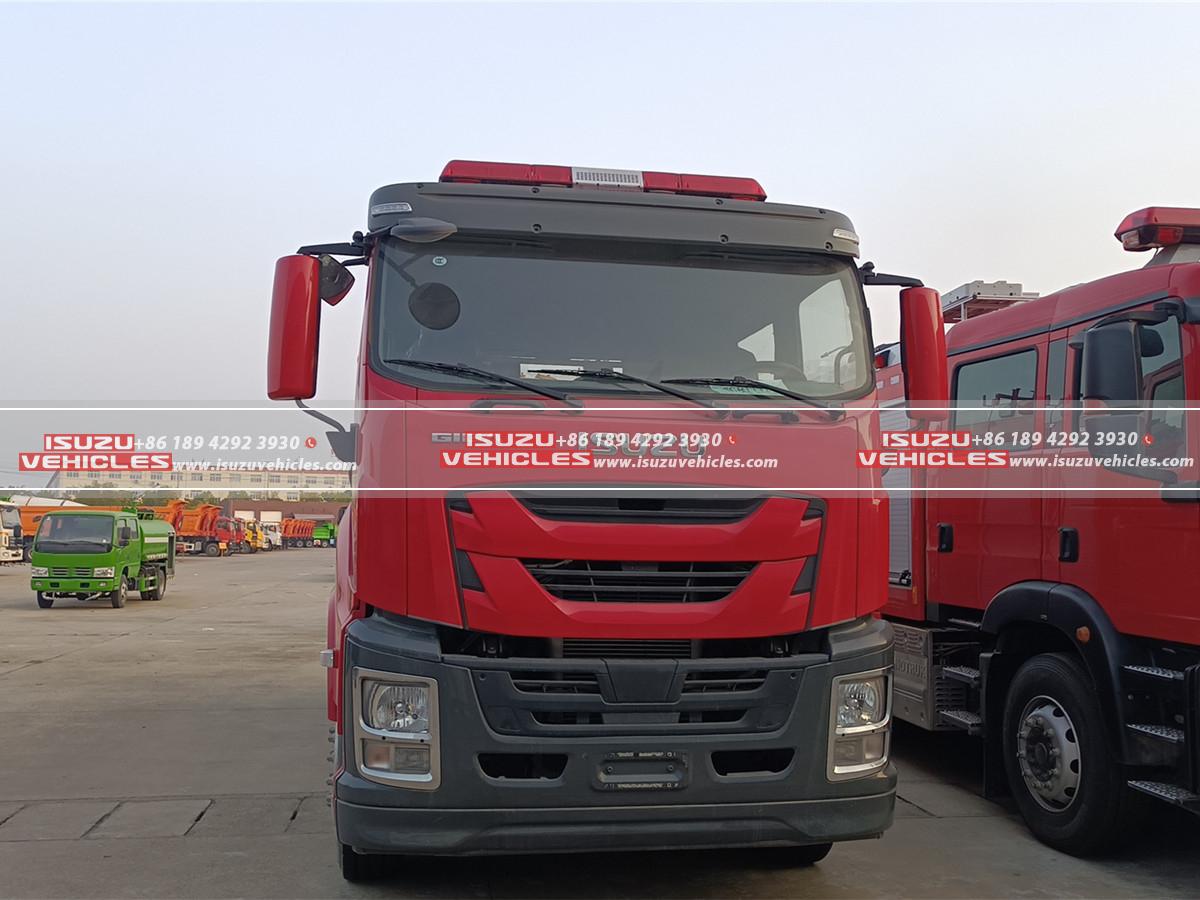

| Chassis | |||
| Make | ISUZU | ||
| Model | ISUZU QL2160VMFRY | ||
| Fuel type | Diesel | ||
| Drive type | 4×4 | ||
| Wheel base | 4500mm | ||
| Front/Rear track | 1960/1855mm | ||
| Tyre specs | 10.00R20 16PR, 11.00R22.5 16PR | ||
| Tyre No. | 6+1 | ||
| Front axle loading | 6300kg | ||
| Rear axle loading | 13000kg | ||
| Engine | |||
| Brand | ISUZU | ||
| Mode | 4HK1-TC50 | ||
| Cylinder | Inline 4-cylinders, | ||
| Output power | 151kw | ||
| Max horse power | 205hp | ||
| Output torque/speed | 650N.m/1500rpm | ||
| Gearbox | ISUZU MLD | ||
| Control type | Manually | ||
| Displacement | 5.193L | ||
| Gear No. | 5 forward+1 reverse | ||
| Cab(Crew) | |||
| Seat No | 2+4 | ||
| Air conditioner | optional | ||
| Color | Red or optional | ||
| A refrigerated box in the cabin. | |||
| The floor covering is non-slip and washable. | |||
| Internal roll bar. | |||
| Respiratory protection system in case of distress when a fire front passes over the vehicle. | |||
| Water tank | |||
| Material | Stainless material | ||
| Structure | Crew cab with 4 doors | ||
| Water tanker Capacity | 5000L | ||
| Others | 1 manhole+1 pressure relief device+1 indicator of liquid level+1 outlet with valve | ||
| The interior of the tank is designed in such a way as to ensure the balancing of the means during maneuvers. | |||
| Protection against overflow: No water loss in the event of a full tank and an inclination/slope ≤ 30° | |||
| Foaming agent | |||
| Capacity | 1000L | ||
| Material | Stainless material | ||
| Others | Pressure level indicator. | ||
| Foam concentrate tank filling level indicator. | |||
| Drain valve | |||
| Water pump | |||
| Brand | Shanghai RONGSHEN | ||
| Model | CB10/60 | ||
| Rated flow | 20L/[email protected] | ||
| Pressure | 1.0MPa | ||
| Fire monitor | |||
| Brand | Chengdu WST | ||
| Model | PS48 | ||
| Rated flow | 48L/S | ||
| Range | ＞50m | ||
| Working Pressure | ＜0.7MPa | ||
| pitch rotation angle | -30～+70(°) | ||
| Horizontal Rotation | 0～360(°) | ||
| Weight | ≤25kg | ||
| Electric system | |||
| Auxiliary lighting | Lighting lamps, and the control panel is equipped with lighting, indicator lights, etc. | ||
| Strobe lights | Red and blue strobe lights on both sides of the vehicle. | ||
| Firefighting light | 35W fire searchlight installed on the rear of the bodywork | ||
| Warning device | Long row red warning lights installed on the top of the cab | ||
| The control box for the siren is located in the front of the driver. | |||
| List of document carried in the vehicle | |||
| No. | Name | Specification | Qty |
| 1 | Water pipe(snap type) | Φ100x2m | 4 |
| 2 | Water filter(snap type) | FLF100 | 1 |
| 3 | Water segregator | FII80/65×2-1.6 | 1 |
| 4 | Manifold converging | JII1100/65×2-1.0 | 1 |
| 5 | Fire hose(Insertion type) | 13-65-20 | 6 |
| 6 | Fire hose(Insertion type) | 3-80-20 | 4 |
| 7 | Injection Fire hose | 13-65-5 | 1 |
| 8 | Irregular onterface | 65/80 | 1 |
| 9 | Hose bandage | DT-SB | 4 |
| 10 | Hose hook | 4 | |
| 11 | Ground fire hydrant wrench | QT-DS1；400 long | 1 |
| 12 | Underground hydrant wrench | 860 long | 1 |
| 13 | Water pipe wrench | FS100 | 2 |
| 14 | Multifunction water spear | QZG3.5/7.5；65 | 1 |
| 15 | Multifunction water spear | QHD3.5/7.5；65 | 1 |
| 16 | Fire extinguisher | 3 kg/ABC | 1 |
| 17 | Fire ax | QTF-PF; 810mm | 1 |
| 18 | Fire waist ax | GF-285;390mm | 1 |
| 19 | Rubber hammer | 1 | |
Photos of tools carried in the fire truck:
