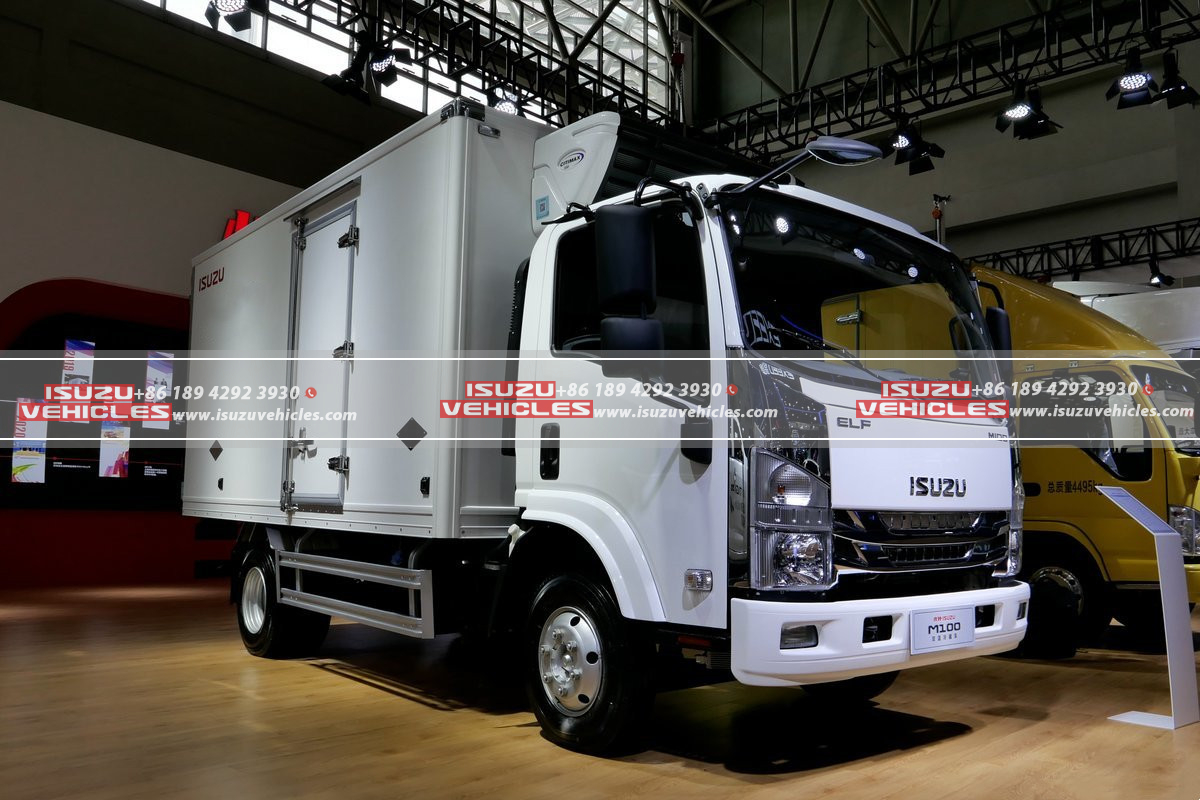

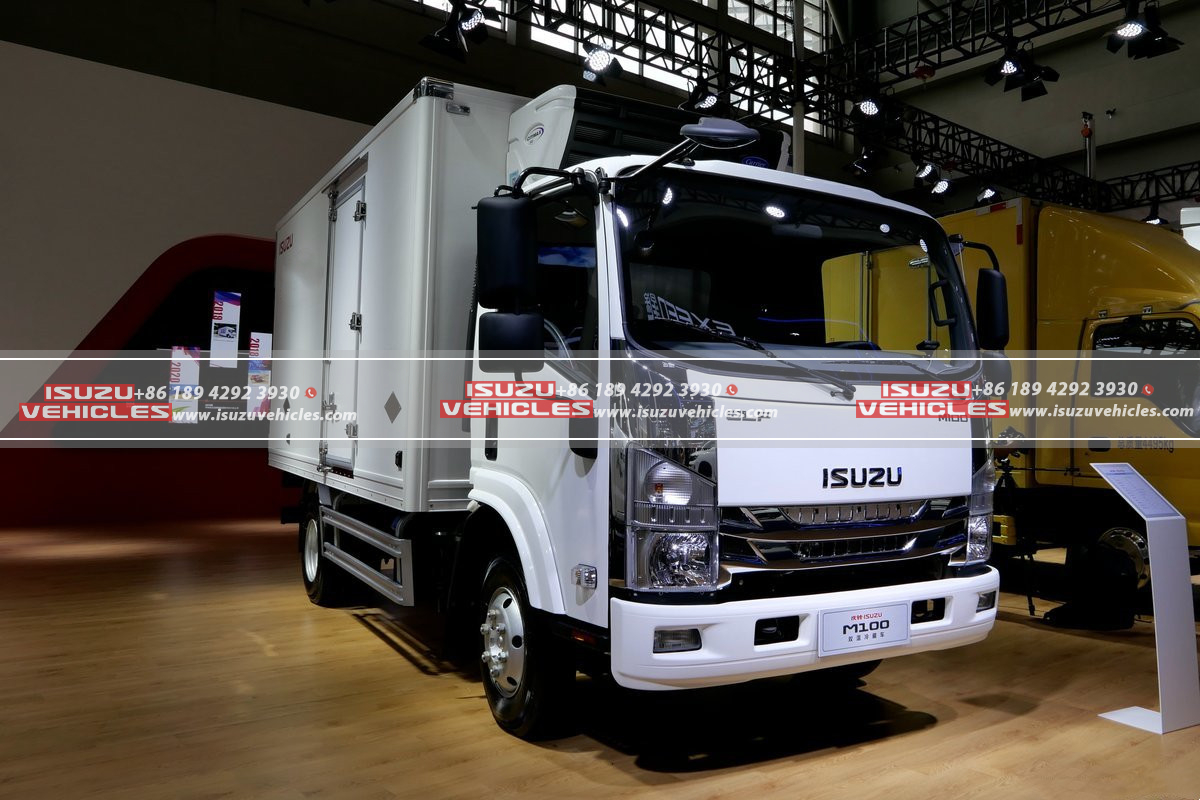

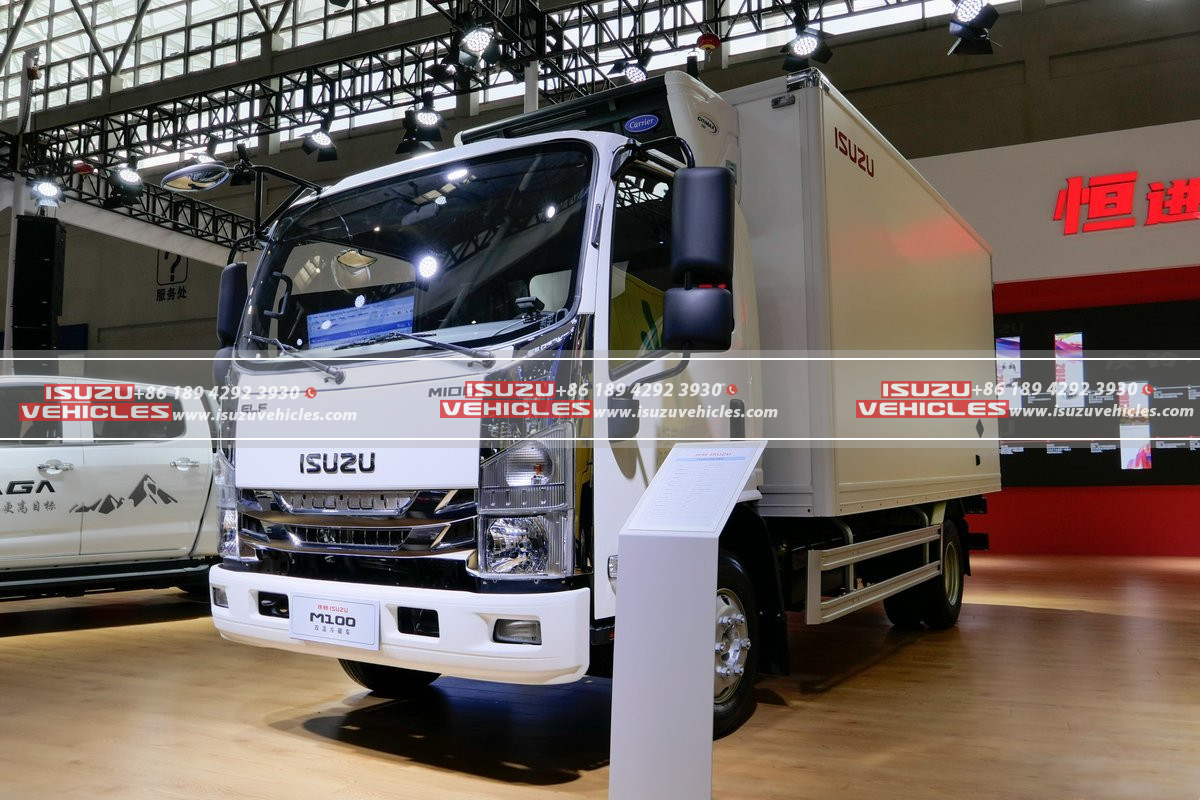

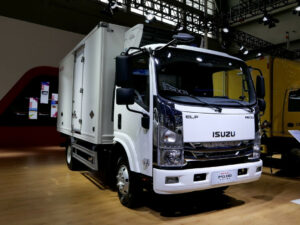

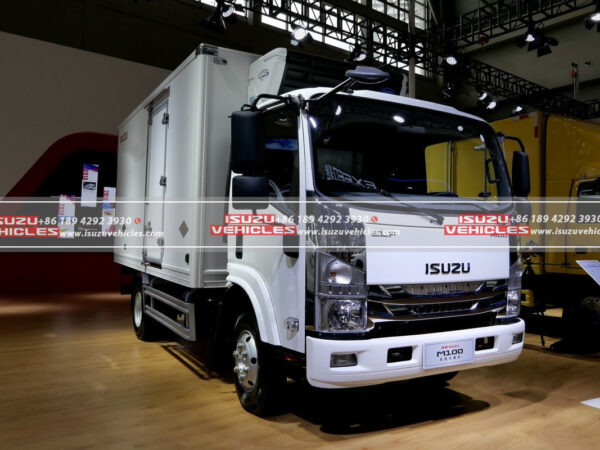

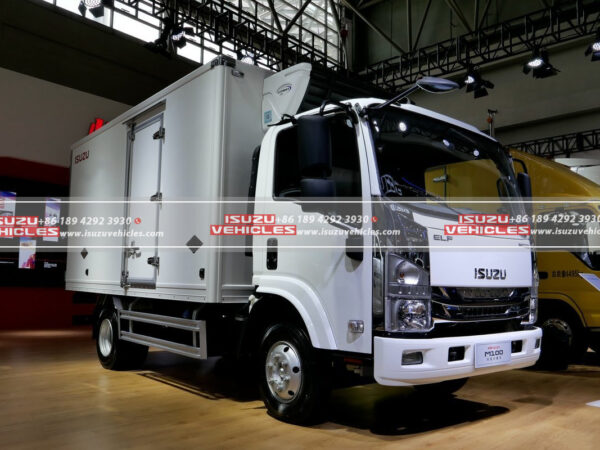

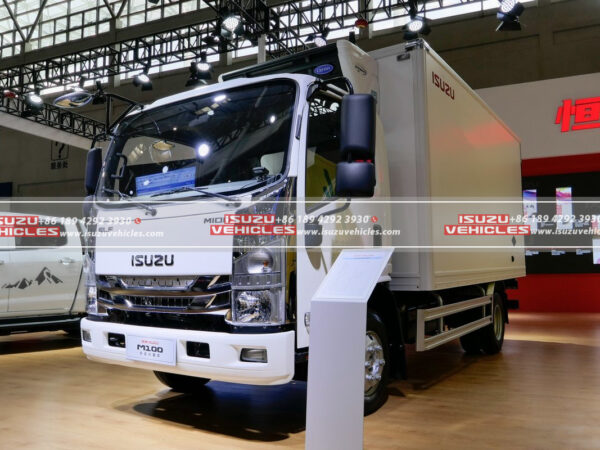

ISUZU 16 CBM Refrigerator Freezer Box Truck

ISUZU 16 CBM Refrigerator Freezer Box Truck

Overview: The ISUZU 16 CBM Refrigerator Freezer Box Truck is a robust and reliable refrigerated vehicle designed to meet the demands of temperature-sensitive cargo transportation. Ideal for maintaining the integrity of perishable goods, this truck combines impressive power, efficiency, and durability to ensure optimal performance in various conditions.

Basic Information:

• Drive Type: 4X2, offering excellent maneuverability and handling.
• Wheelbase: 3365 mm, providing stability and smooth driving experience.
• Vehicle Dimensions: With an overall length of 5.995 meters, width of 2.27 meters, and height of 2.97 meters, this truck provides ample space for both the cargo and operational needs.
• Front Overhang / Rear Overhang: Measuring 1.11 meters and 1.525 meters respectively, these dimensions contribute to balanced weight distribution.
• Rated Load Capacity: Capable of carrying up to 1.09 tons, making it suitable for various transport tasks.
• Gross Vehicle Weight: 3.21 tons, ensuring durability under substantial loads.
• Front Track: 1640 mm and Rear Track: 1655 mm for improved stability and road grip.
• Maximum Speed: Achieves up to 105 km/h, allowing efficient and timely deliveries.
• Fuel Type: Diesel, offering a balance between power and economy.

Engine Parameters:

• Engine Brand: Qingling Isuzu, renowned for reliability and performance.
• Engine Model: Qingling Isuzu 4KH1CN6LB, featuring advanced engineering.
• Number of Cylinders: 4, ensuring a smooth and efficient power delivery.
• Maximum Output Power: 88 kW, equivalent to 120 horsepower, providing robust performance.
• Displacement: 2.999 liters, supporting substantial engine power.
• Emission Standards: Compliant with Euro III, IV, and V, ensuring environmentally friendly operation.
• Maximum Torque: 290 N·m at an optimal RPM for enhanced performance.
• Fuel Type: Diesel, optimizing operational efficiency.
• Maximum Torque RPM: Achieves peak torque at 1700 RPM.
• Rated RPM: 3400 RPM for consistent engine performance.

Cargo Box Parameters:

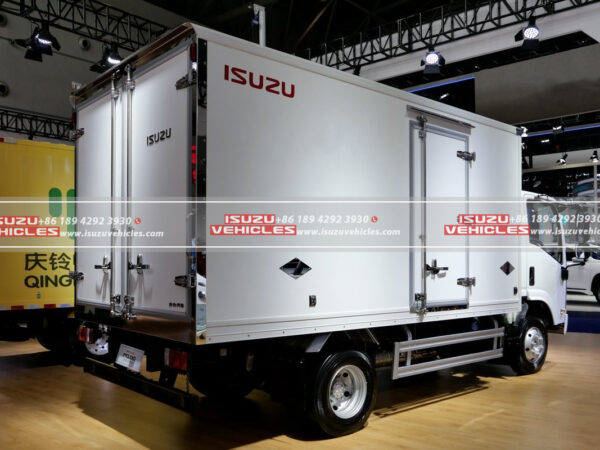

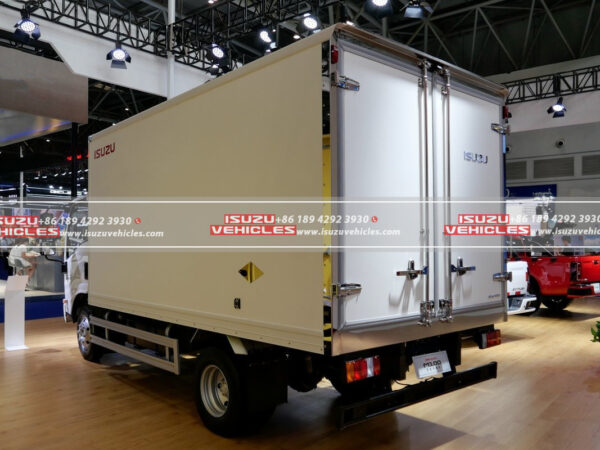

• Cargo Box Dimensions: Spacious with a length of 4.015 meters, width of 2.1 meters, and height of 1.8 meters, designed to accommodate various types of cargo.

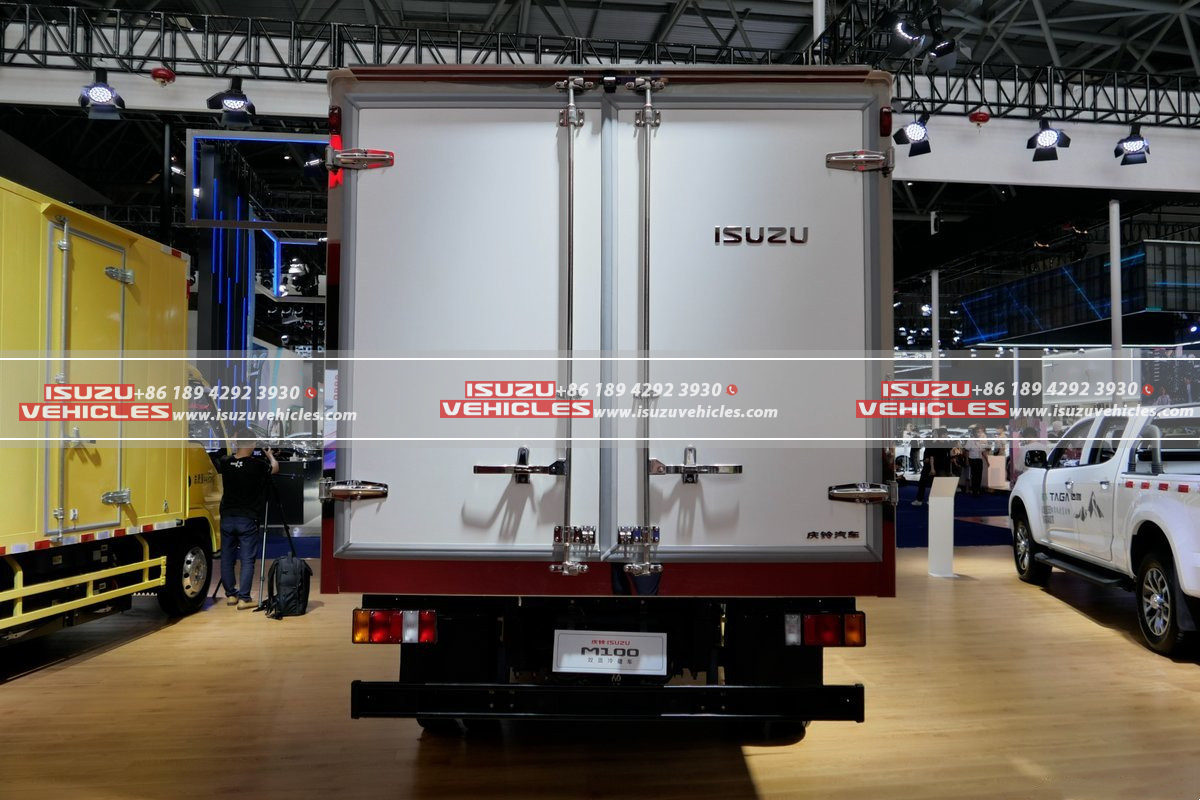

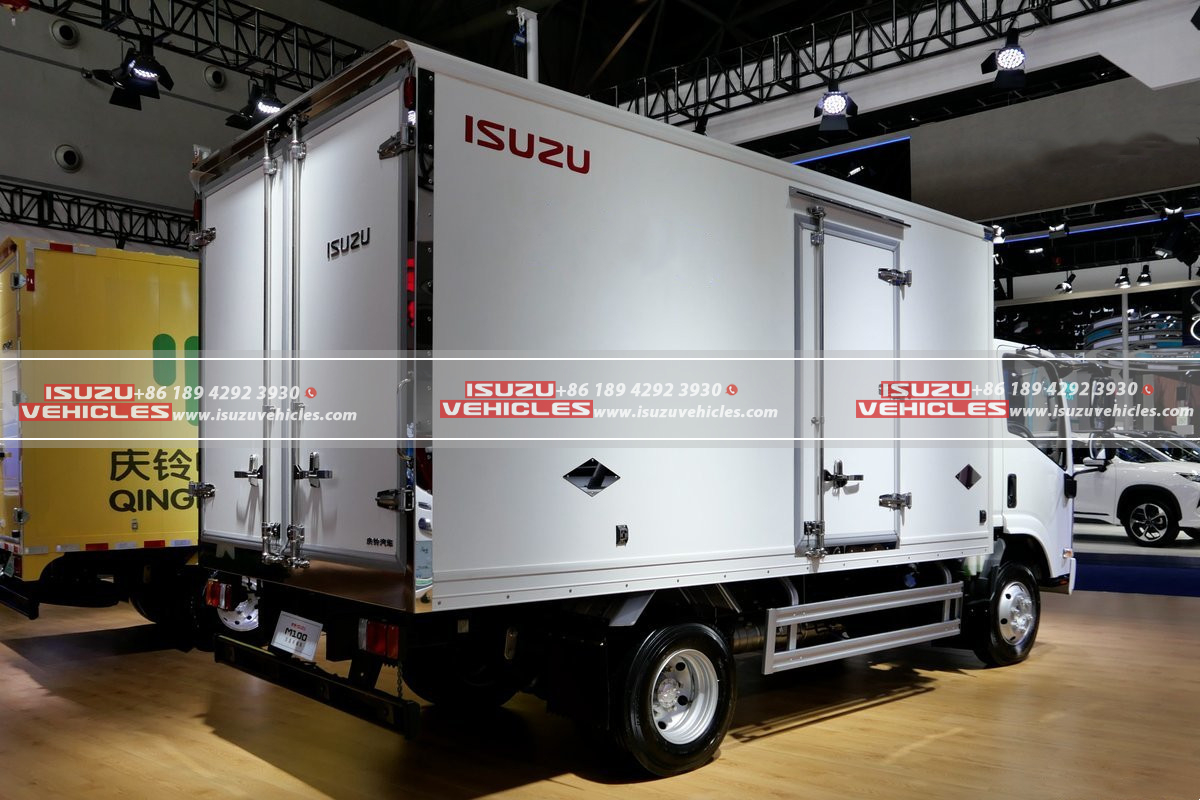

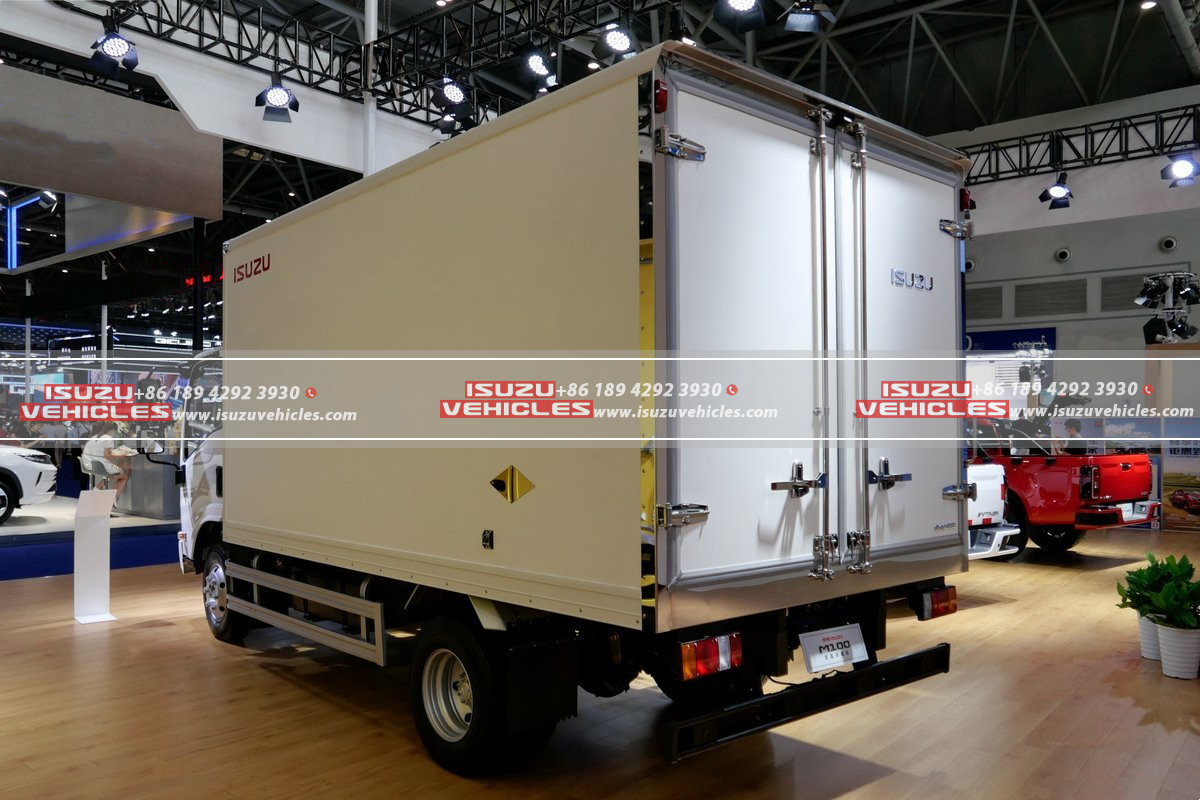

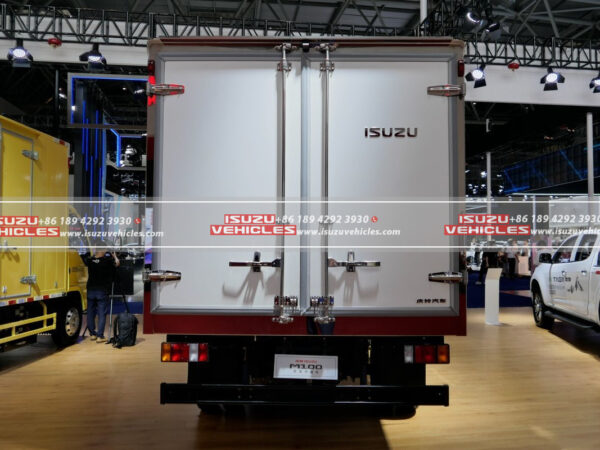

• Cargo Box Construction: Features fiberglass insulation on both the outer and inner layers, an 8 cm thick polyurethane middle layer, an anti-slip patterned aluminum floor, and aluminum alloy ventilation slots. Equipped with stainless steel door locks and a single side door, this construction ensures durability and effective temperature control.

Superstructure Parameters:

• Vehicle Type: Refrigerated Truck, specifically designed to transport temperature-sensitive goods.
• Superstructure Brand: Isuzu, known for high-quality and reliable superstructures.

Cab Parameters:

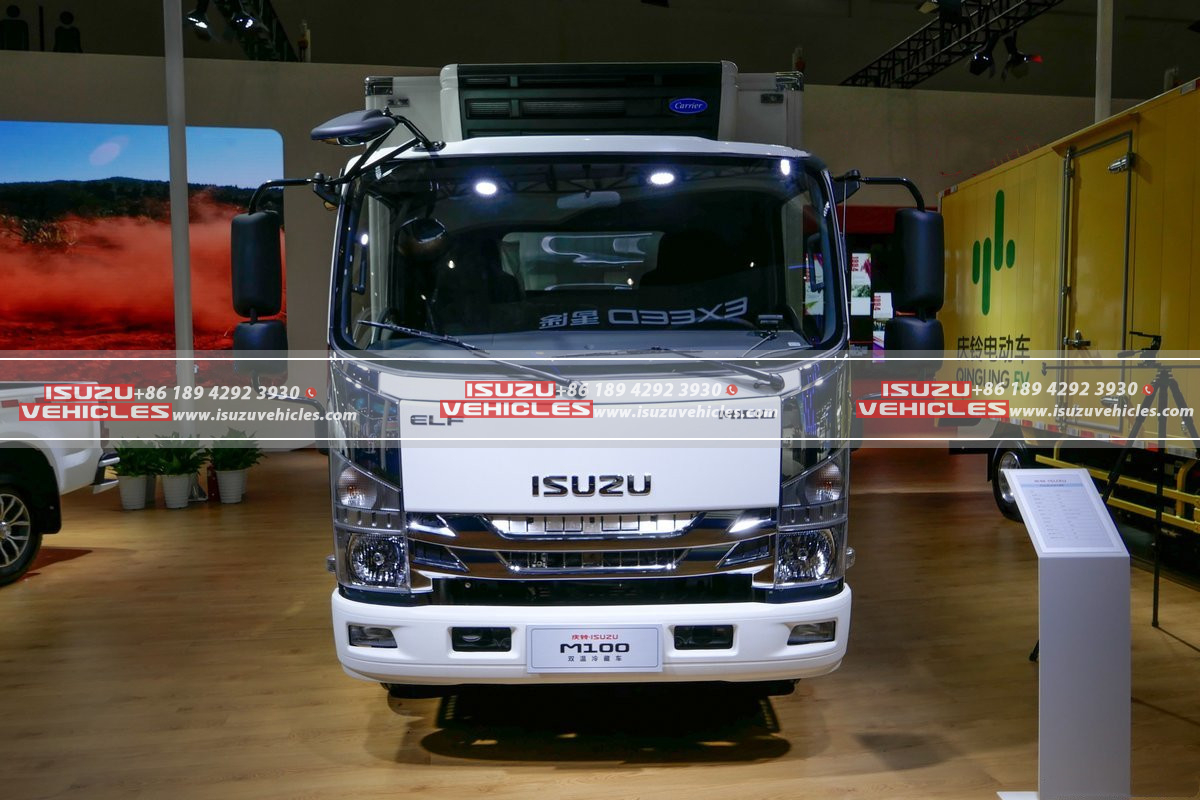

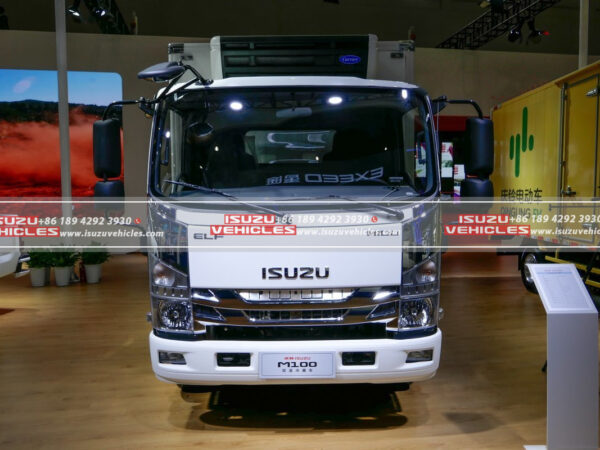

• Cab Model: M100, designed for driver comfort and functionality.

Transmission Parameters:

• Transmission Model: 5-speed gearbox, providing versatility and control.
• Number of Gears: 5, allowing for a range of driving conditions.

Chassis Parameters:

• Chassis Brand: Isuzu, a leader in robust and reliable chassis systems.
• Chassis Series: M100, tailored for heavy-duty performance.
• Number of Leaf Springs: 3/3+2, enhancing load-bearing capacity and stability.

Tires:

• Number of Tires: 6, ensuring balanced and reliable performance.
• Tire Specifications: 7.00R16LT 8PR, designed for durability and traction.

This ISUZU 16 CBM Refrigerator Freezer Box Truck offers a well-rounded solution for transporting perishable items, combining powerful performance with advanced features for optimal refrigeration and reliability.

SPECIFICATIONS:

Category	Details
Basic Information & Engine	Drive Type: 4X2 Wheelbase: 3365 mm Vehicle Dimensions: 5.995 × 2.27 × 2.97 meters Front Overhang / Rear Overhang: 1.11 / 1.525 meters Rated Load Capacity: 1.09 tons Gross Vehicle Weight: 3.21 tons Front Track: 1640 mm Rear Track: 1655 mm Maximum Speed: 105 km/h Fuel Type: DieselEngine Parameters: Engine Brand: Qingling Isuzu Engine Model: Qingling Isuzu 4KH1CN6LB Number of Cylinders: 4 Maximum Output Power: 88 kW Maximum Horsepower: 120 hp Displacement: 2.999 L Emission Standards: Euro III, Euro IV, Euro V Fuel Type: Diesel Maximum Torque: 290 N·m
Cargo, Superstructure & Chassis	Cargo Box Parameters: Cargo Box Dimensions: 4.015 × 2.1 × 1.8 meters Cargo Box Length: 4.015 meters Cargo Box Width: 2.1 meters Cargo Box Height: 1.8 metersSuperstructure Parameters: Vehicle Type: Refrigerated Truck Superstructure Brand: Isuzu Cab Parameters: Cab: M100 Transmission Parameters: Transmission Model: 5-speed gearbox Number of Gears: 5 Chassis Parameters: Chassis Brand: Isuzu Chassis Series: M100 Number of Leaf Springs: 3/3+2 Tires: Number of Tires: 6 Tire Specifications: 7.00R16LT 8PR
